Description
Overview

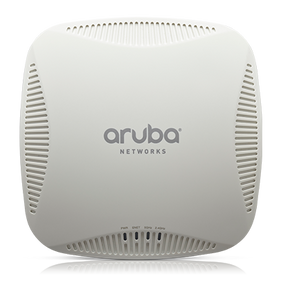

The APIN0205 is targeted at customers that need enterprise-class 802.11ac Wi-Fi, integrated omni-directional antennas, and medium client density. Developed to meet the needs of the world's largest enterprises and institutions, Aruba Instant is the only solution that delivers superior Wi-Fi performance, security, and resiliency without a network controller. Set-up takes just minutes from your laptop, tablet, or smartphone browser, or use zero-touch cloud provisioning to make life even simpler. Either way, installers can deploy more sites in less time. Auto-adapting RF management, dependable voice and video roaming, and a full suite of security and guest access features mean fewer callbacks. And if a problem does surface, integrated troubleshooting tools and remote management helps you take it to root-cause in no time.
Specifications
Model Number: APIN0205
Brand: Aruba Networks
Alt Part Number(s): APIN0205
Note: Power sources sold separately
Technical Description
Brand: Aruba Networks
Model: APIN0205
Wireless LAN Standard: IEEE 802.11ac
Frequency Band: 2.40 GHz, 5 GHz
Wireless Transmission Speed: 867 Mbit/s
MIMO Technology: Yes
Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
10Gigabit Ethernet Port: No
PoE (RJ-45) Port: No
VGA: No
HDMI: No
Powerline: No
Management Port: Yes
Power Source: AC Adapter, PoE
Form Factor: Ceiling Mountable, Wall Mountable
Height: 1.6"
Width: 5.9"
Depth: 5.9"
Green Compliant: RoHS
ISM Band: Yes
UNII Band: Yes
Antenna Gain: 4 dBi, 6 dBi
Antenna Type: Omnidirectional Antenna
Audio Line Out: No
Serial Port: Yes
Network (RJ-11): No
IEEE Standards: 802.3, 802.3u, 802.3ab, 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.3af
Input Voltage: 12 V DC
Features
Quality of Service (QoS)
MIMO Technology
Security Slot
Certifications & Standards
CB Scheme Safety, cTUVus
UL2043 Plenum Rating
Regulatory:
FCC/Industry of Canada
CE Marked
R&TTE Directive 1995/5/EC
Low Voltage Directive 72/23/EEC
EN 300 328
EN 301 489
EN 301 893
UL/IEC/EN 60950
EN 60601-1-1 and EN 60601-1-2
POWER
• Maximum (worst-case) power consumption: 12.5 watts
(PoE) or 11.7 watts (DC)
• Maximum (worst-case) power consumption in idle mode:
8.4 watts (PoE) or 7.7 watts (DC)
• Direct DC source: 12 Vdc nominal, +/- 5%
• Power over Ethernet (PoE): 48 Vdc (nominal)
802.3af-compliant source
• Power sources sold separately
• When both power sources are available, DC power
takes priority
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
