Arecont Vision Dome Camera 6.2Mm Lens 20Mp SurroundVideo Series AV20185DN

$1,079.00 Regular price
Sale price$1,079.00
Arecont VisionSKU: 1149196
Model Number: AV20185DN
Condition: New
In stock:  No
No reviews


This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.

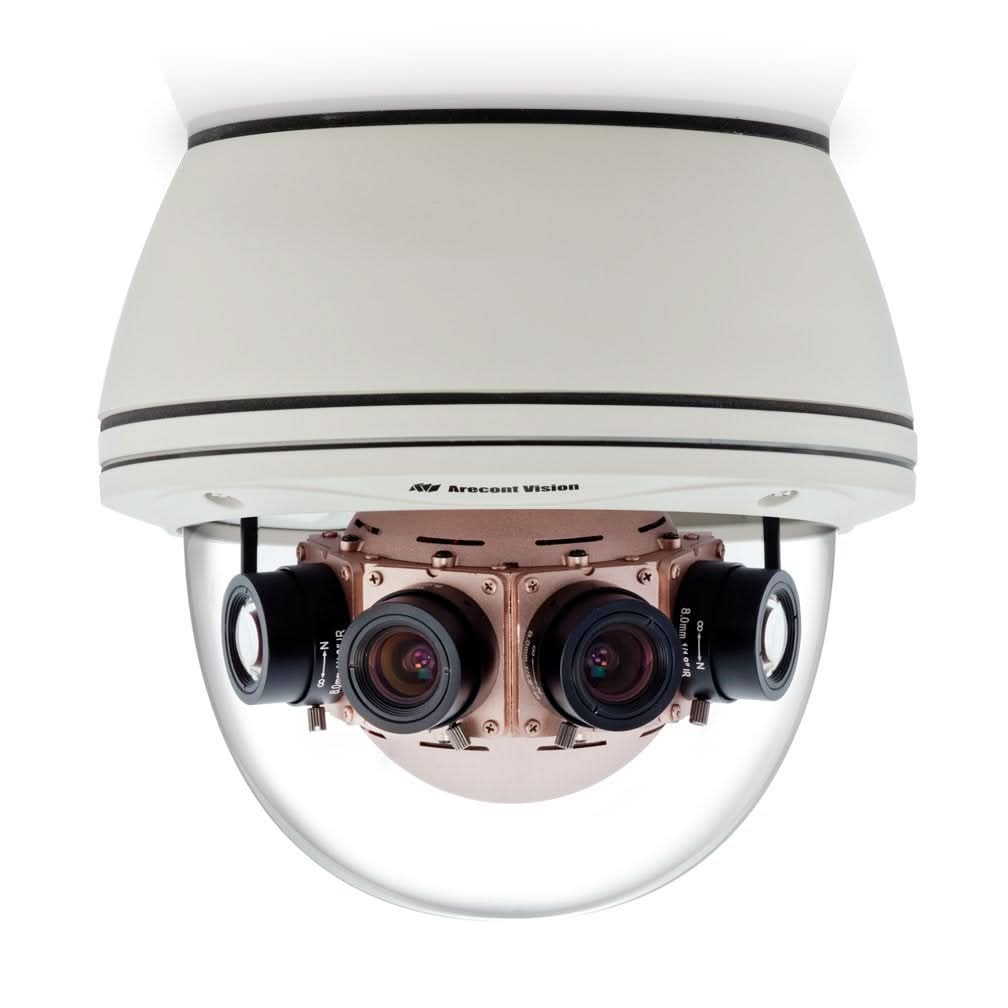

The SurroundVideo Series 20MP Outdoor Dome Camera from Arecont Vision consists of four sensors, each with a 2560 x 1920 resolution, for a total resolution of 20MP. The sensors use 6.2mm lenses with f/1.8 apertures for four 47° fields of view, and the camera has the capability to capture a 180° panoramic field of view. Furthermore, an electrical vertical alignment function allows you to locate each sensor position within ±5°, and an easily adjustable 2-axis gimbal enables each sensor to pan 360° and tilt 90°. The camera is housed in a single IP66-rated weatherproof and IK10-rated impact-resistant dome cover, and it comes with a built-in heater and blower for use in hot or cold climates.The AV20185 SurroundVideo® series network camera is a dual encoder (H.264 & MJPEG), 20 Megapixel resolution, IP addressable 180 degree panoramic Day/Night IP camera. The AV20185 SurroundVideo® camera line provides an all-in-one solution with integrated four high sensitivity 5 megapixel sensors, 6.2mm lens, vandal resistant dome enclosure with rated IP66 for water and dust protection, and optional heater/blower. Using MegaVideo® technology, these cameras offer bandwidth and storage efficiency of up to 10X on average over traditional megapixel counterparts



Model Number:  AV20185DN

Brand:  Arecont Vision

Alt Part Number(s):  AV20185DN

Product Type:  Dome Camera


Technical Description

Brand:  Arecont Vision

Model:  AV20185DN

Sensor:  4 x 5 MP 1/2.5" CMOS

Resolution:  20 Megapixel

Lens Size:  6.2mm

Rotation Angles:  360 pan, 90 tilt

Compression:  H.264, M-JPEG, MPEG-4

Compression Method:  H.264, M-JPEG

Durability:  Indoor, Vandal Resistant, Weather Resistant

Minimum Illumination:  Color: 0.3 lux ; Color Binning: 0.15 lux ; True Day/Night: 0 lux, IR sensitive

Network Protocols:  RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP

Network Interface:  100Base-T Ethernet

Voltage:  12-48vDC, 24vAC, PoE

Power Consumption:  9 W

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Mount Type:  Ceiling, Wall



Industry's First 20MP Panoramic Megapixel Camera

Dual Encoder H.264/MJPEG

Indoor/Outdoor IP66, Vandal Resistant and IK-10 Rated Dome

Reduced Overall System Cost

Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt

+/- 5 ° Electrical Vertical Alignment to Locate Each Sensor Position

Bit Rate Control, Privacy Mask and Multi-Streaming

Forensic Zooming

PoE and Auxiliary Power: 12–48V DC/24V AC
