Arecont Vision AV2146DN-3310-D 2MP CMOS MegaBall Dome Network Camera

Overview

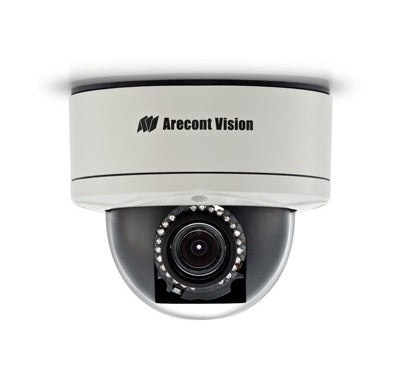

The AV2146 MegaBall(tm) full HD 1080p WDR network camera is part of Arecont Vision's full line of H.264 MegaBall(tm) cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 30 frames per second (fps). The AV2146 camera line provides an all-in-one indoor 3" ball shape solution with integrated 1080p WDR full HD camera, and 3.3-10mm IR corrected lens. With the features of PSIA and ONVIF conformance, privacy masking, extended motion detection and flexible cropping, the AV2146 is a high sensitivity, PoE (IEEE 802.3af) compliant, day/night camera. Built with Arecont Vision's massively-parallel MegaVideo(tm) processing technology, this camera offers more than 6-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging.



Specifications

Model Number:  AV2146DN-3310-D

Brand:  Arecont Vision

Alt Part Number(s):  AV2146DN-3310-D

Product Type:  Dome Camera



Technical Description

Brand:  Arecont Vision

Model:  AV2146DN-3310-D

Resolution:  2MP

Technology:  Digital - IP

Image Sensor:  Day/Night (NO IR)

Optical Format:  1/3.2"

Image Sensor:  CMOS

Max Focal Length:  10.0

Min Focal Length:  3.3

Lens Size:  3.3-10mm

Lens:  Varifocal

Day/Night:  Yes

Motion Detection Tracking:  Yes

Durability:  Indoor, Vandal Resistant

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



Features

All-in-One H.264 Indoor 3" Ball Shape Day/Night Solution

3.3-10mm Vari-focal Lens

Tamper Resistant

Integrated Dome Enclosure

Installer Friendly Design

PSIA and ONVIF Conformant

New User-Friendly Webpage

True WDR up to 100dB at Full Resolution

Privacy Mask, Motion Detection, Flexible Cropping and Forensic Zooming

True Day/Night Functionality with Removable IR Cut Filter
