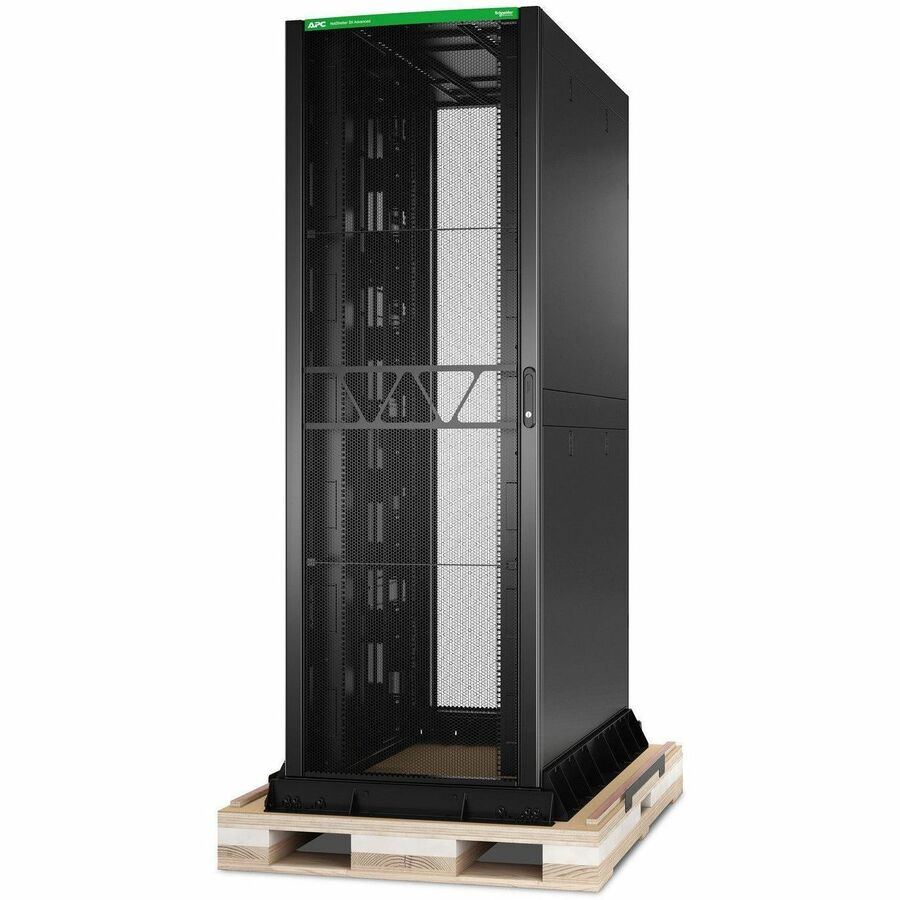

APC NetShelter SX AR9657SPB2 48U 4250lb Static Load Capacity Rack
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
APC AR9657SPB2 Rack series is a 48U 19 inch rack designed with a static load capacity of 4250 lb, a dynamic shipping load capacity of 3500 lb with shock packaging, and support for 70 kW power loads that can be extended up to 100 kW. It features a maximum mounting depth of 52.0 inches, perforated front and rear doors with up to 80 percent airflow, four repositionable Zero U accessory channels, lockable doors and side panels, and measures 88.8 inches high, 29.5 inches wide, and 57.9 inches deep with a product weight of 637.1 lb.
Specifications
Model Number: AR9657SPB2
Brand: APC
Alt Part Number(s): AR9657SPB2
Product Type: Rack
Technical Description
Brand: APC
Model: AR9657SPB2
Static Load Capacity: 4250 lb (1927.8 kg)
Dynamic/Shipping Load Capacity (with Shock Package): 3500 lb (1587.6 kg)
Maximum Mounting Depth: 52.0 in (1320.8 mm)
Minimum Mounting Depth: 11.5 in (292 mm)
Supported Power Load: Designed for 70 kW; Extendable up to 100 kW
Airflow: Perforated front and rear doors; Up to 80% perforation rate
Accessory Channels: Four repositionable Zero-U channels for PDUs or liquid cooling manifolds
Security: Lockable doors; Split, lockable side panels; Key-locking handles
Height: 88.8 in (2256 mm)
Width: 29.5 in (750 mm)
Depth: 57.9 in (1470 mm)
Rack Height: 48U
Rack Width: 19 in
Product Weight: 637.1 lb (289 kg)
