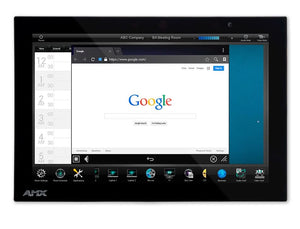

AMX MXD-1001-L FG5968-49 X Series G5 10.1-Inch Wall Mount Touch Panel
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Specifications
Model Number: MXD-1001-L
Brand: AMX
Alt Part Number(s): FG5968-49
Product Type: Wall Mount Touch Panel
Technical Description
Brand: AMX
Model: MXD-1001-L
Display Size (WH):Landscape: 9.9" x 6.7" 12.0" (304 mm) diagonal, Portrait: 6.7" x 9.9", 12.0" diagonal
Viewable Area (WH): Landscape: 8.5" x 5.3", 10.1" diagonal, Portrait: 5.3" x 8.5",10.1" diagonal
SDRAM: 2 GB
Flash RAM:16 GB
Resolution: Landscape: 10.0”1280x800, Portrait: 800x1280
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio: Landscape: 16:9, Portrait: 9:16
Camera: HD 720p camera for video conferencing
Display Size Landscape: 9.9" x 6.7" 12.0" (304 mm) diagonal,
Viewable Area Landscape: 8.5" x 5.3" 10.1" (257mm) diagonal,
Graphics Engine:AMX G5
USB: USB host 2.0, Type A ports Micro-USB device port
Front Panel Components: Light Sensor, Proximity Detector, Camera, LED Indicators, Sleep
ETHERNET: 10/100 Auto MDI-X port, RJ-45 connector. Supported IP Based Protocols UCP, CP,
Touch Overlay: Projected capacitive, multi-touch support, 3 simultaneous max
Networking: Support for static/dynamic IPv4 and static IPv6
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
*
