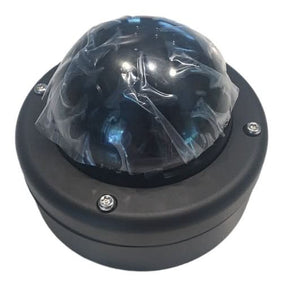

American Dynamics ADCA3DBOT2N 600TVL 3-9Mm Varifocal Lens Outdoor Dome Camera

Overview

The Discover 300 Series Mini-Dome Cameras, outdoor, offer an attractive price/performance ratio by providing higher resolution images and accurate color rendition to budget-conscious customers. Digital Signal Processing (DSP), combined with 600 TVL on a 1/3" Format Interline CCD sensor, delivers clear picture quality typically available only from more expensive models. An advanced pivoting axis allows you to position the camera at exactly the angle you need whether wall or ceiling mounted. Low light sensitivity renders sharp images in scenes as dim as 0.5 lux. With up to eight data privacy zones, you can configure the camera to conceal private areas in the camera’s field of view such as areas that are not subject to surveillance.



Specifications

Model Number:  ADCA3DBOT2N

Brand:  American Dynamics

Alt Part Number(s):  ADCA3DBOT2N

Product Type:  Dome Camera



Technical Description

Brand:  American Dynamics

Model:  ADCA3DBOT2N

Imager:  1/3" Format Interline CCD sensor

Horizontal Resolution:  600TVL

Lens Size:  3-9mm

S/N Ratio:  48 dB (100 IRE)

Scanning System:  2:1 Interlace

Active Pixel Count (H x V):  NTSC - 768 x 494 , PAL - 752 x 582

Durability:  Vandal Resistant, Weather Resistant

Minimum Scene Illumination:  0.55 Lux (50IRE, F=1.4, AGC max.)

Operating Humidity:  90% (non condensing)

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Mount Type:  Ceiling, Wall

Dimensions (W x H):  136 x 94.2 mm (5.35 x 3.7 in)



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
