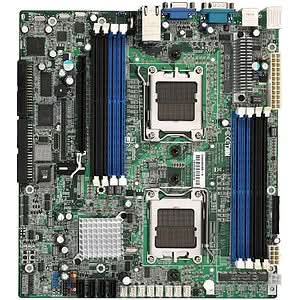

Tyan Computer S2933G2NR AMD Socket-F LGA-1207 32Gb DDR2 Flex-ATX Motherboard

Overview

A versatile entry level server platform, the Thunder n3600S (S2933) Server Board, offers excellent features. A flexible form factor system board supporting (2) AMD Opteron (Rev.F) 2000 series processors, (8) DDR2 DIMMs up to 32 GB DDR2 registered memory, (1) nVIDIA nForce Pro 3600 chipset, (1) PCI-Express x 16 slot, and (4) SATAII connector supporting RAID 0/1/0+1/5. The Thunder n3600S (S2933) is the absolute solution for network infrastructure development and front-end serving needs.



Specifications

Model Number:  S2933G2NR

Brand:  Tyan Computer

Alt Part Number(s):  S2933G2NR

Product Type:  Server Motherboard



Technical Description

Brand:  Tyan Computer

Model:  S2933G2NR

Total Processor Supported:  2

Processor Technology:  HyperTransport Technology

Processor Socket:  Socket F (1207)

Processor Supported:  AMD Opteron

HyperTransport Speed:  1000 MHz

Number of Memory Slots:  8

Maximum Memory:  32 GB

Memory Standard:  DDR2-400/PC2-3200, DDR2-667/PC2-5300, DDR2-533/PC2-4200

Memory Technology:  DDR2 SDRAM

Controller Type:  Ultra ATA/133 (ATA-7), Serial ATA/300, Floppy Controller

Onboard Video:  On-board Video Chipset

Graphics Controller:  XGI Volari Z7 (XG20)

Graphics Controller Memory:  16 MB

Gigabit Ethernet:  Yes

Number of Total Expansion Slots:  1

Total Number of PCI Express Slots:  1

Number of PCI Express x16 Slots:  1

Total Number of USB Ports:  2

Number of USB 2.0 Ports:  2

Serial Port:  Yes

VGA:  Yes

Network (RJ-45):  Yes

Number of IDE Interfaces:  1

Number of SATA Interfaces:  4

Total Number of Onboard USB Ports:  1

Onboard LEDs Header:  Yes

Width:  10.4"

Depth:  9.4"
