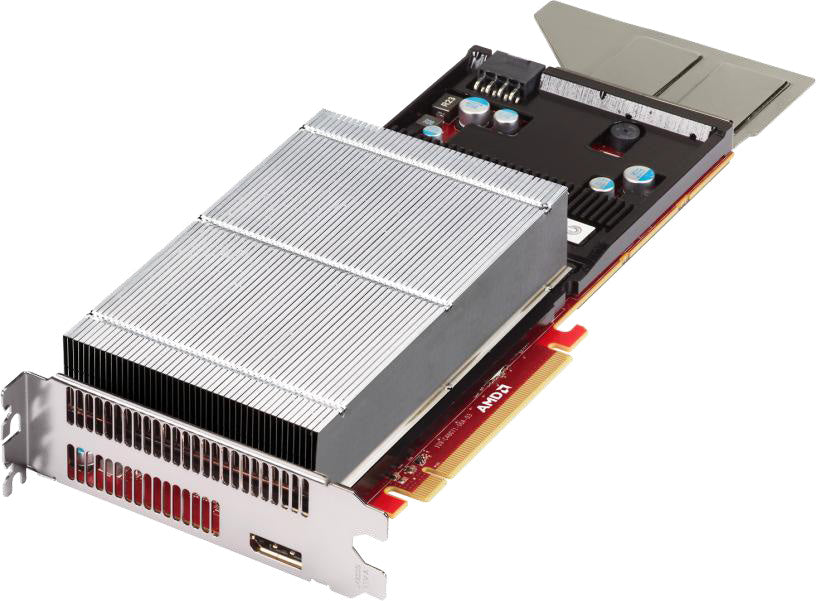

AMD 100-505748 FirePro S9000 6GB GDDR5 PCIe Server Video Graphic

$1,799.00 Regular price
Sale price$1,799.00
AMDSKU: 861584
Model Number: 100-505748
Condition: New
In stock:  Yes
No reviews

For Volume / Bulk Purchase Discounts Available

Shop with confidence! Saitech Inc is an authorized AMD Partner Reseller.

Learn more by visiting the manufacturer's website.



The FirePro S9000 Server Graphics Card from AMD is a server-side graphics card for applications where desktop-grade graphics need to be deployed over a network. It is designed to give thin client and zero client remote users a similar experience to having a local workstation while keeping all of the hardware required for heavy lifting confined to a centralized location for simpler maintenance and administration. The card features 6GB of GDDR5 memory over a 384-bit memory interface providing a memory bandwidth of 264 GB/s. A DisplayPort output allows local displays to be connected to the card. Using AMD Eyefinity technology and MST hubs or daisy-chainable monitors it is possible to connect up to a total of six displays via DisplayPort. The FirePro S9000 is designed for applications that require or benefit from the additional processing power a dedicated graphics card provides, such as CAD, video editing, 3D animation, render farms, and financial services. It also supports virtual machine applications, including the installation of multiple GPUs in one server to provide one dedicated GPU per virtual machine.



Model Number:  100-505748

Brand:  AMD

Alt Part Number(s):  100-505748

Product Type:  Video Graphic Adapter


Technical Description

Brand:  AMD

Model:  100-505748

Interface:  PCI Express 3.0 x16

Chipset Manufacturer:  AMD

GPU:  FirePro S9000

Core Clock:  900Mhz

Memory Size:  6GB

Memory Interface:  384-bit

Memory Type:  GDDR5

DirectX:  DirectX 11

OpenGL:  OpenGL 4.2

DisplayPort:  1

Digital Resolution:  4096 x 2160

Cooler:  Passive heat sink

Operating Systems Supported:  Microsoft Windows Vista, Windows 7 or Linux (32-bit or 64-bit, Support for Windows 8 and Windows Server 2012 planned for future driver release


System Requirements

Max Power: 225W

Single PCIe x16 lane, 3.0 for optimal performance

2GB system memory

Internet access for software installation

Power supply plus one 2x4 (8-pin) AUX power connector



Specially designed for use in rackmount servers, blades and PCIe expansion chassis

Passive thermal solution for deployment flexibility

Energy efficient design and dual-slot heatsink help reduce power costs

6GB GDDR5, largest frame buffer offered in an AMD passively cooled form factor

Optimized performance for workstation graphics applications

Removable retention bracket

Support for SMBus temperature reporting at boot up

Massively parallel architecture for GPU compute

Support for Citrix and VMware virtual machines

Support for Microsoft RemoteFX

PCIe 3.0 compliant

Designed and thoroughly tested by AMD

Planned minimum four year lifecycle

806 GFLOPS of peak double-precision floating-point performance

3.23 TFLOPS of peak single-precision floating-point performance
