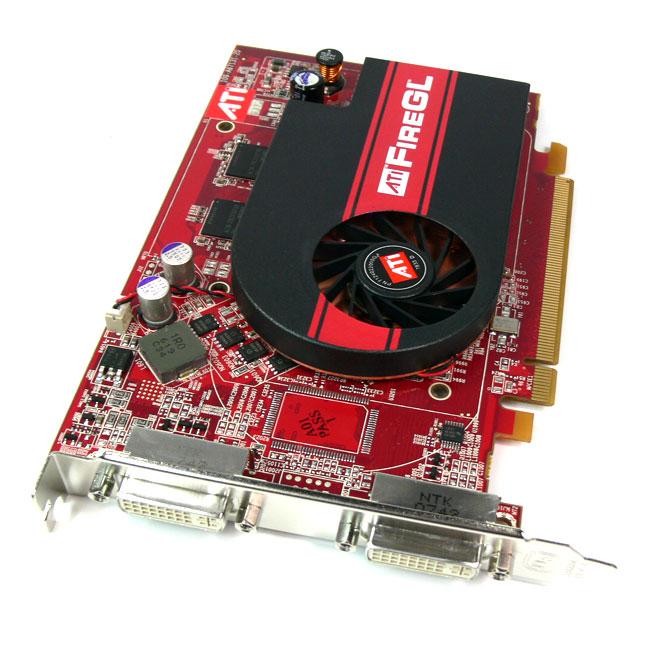

AMD 100-505157 ATI FireGL V5200 256Mb 128-Bit GDDR3 3840x2400 PCI-Express x16 Video Graphic Adapter
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Specifications
Model Number: 100-505157
Brand: AMD
Alt Part Number(s): 100-505157
Product Type: Video Graphic Adapter
Technical Description
Brand: AMD
Model: 100-505157
Interface: PCI Express x16
Chipset Manufacturer: ATI
GPU: FireGL V5200
PixelPipelines: 12
Memory Size: 256MB
Memory Interface: 128-bit
Memory Type: GDDR3
DirectX: DirectX 9
OpenGL: OpenGL 2.0
DVI Ports: 2
RAMDAC: 400 MHz
Analog Resolution: 3840 x 2400
Cooler: With Fan
Dual-Link DVI Supported: Yes
Operating Systems Supported: Windows XP, Windows XP64 and Windows 2000, Linux 32 and Linux 64 4, Windows Vista Ready
System Requirements
PCI Express based workstation with available x16 lane graphics slot
350-Watt power supply or greater (assumes fully loaded system)
512MB of system memory
Installation software requires CD-ROM drive
Features
Powered by ATI's next generation FireGL graphics processor unit with Avivo Technology
Scalable ultra-threaded architecture with 5 Parallel Geometry Engines and 12 Pixel Shader Processors
Full Shader Model 3.0 support for vertex and pixel shaders
256MB GDDR3 graphics memory with 256-bit ring bus memory controller
High Dynamic Range (HDR) rendering with 8-bit, 10-bit & 16-bit per RGB color component support
High fidelity display engine capable of producing over one billion colors
Two Dual Link outputs each capable of ultra-high resolutions up to 3840 x 2400
Optimized and certified for CAD and DCC applications
Direct access to ATI's dedicated workstation technical support team
*
