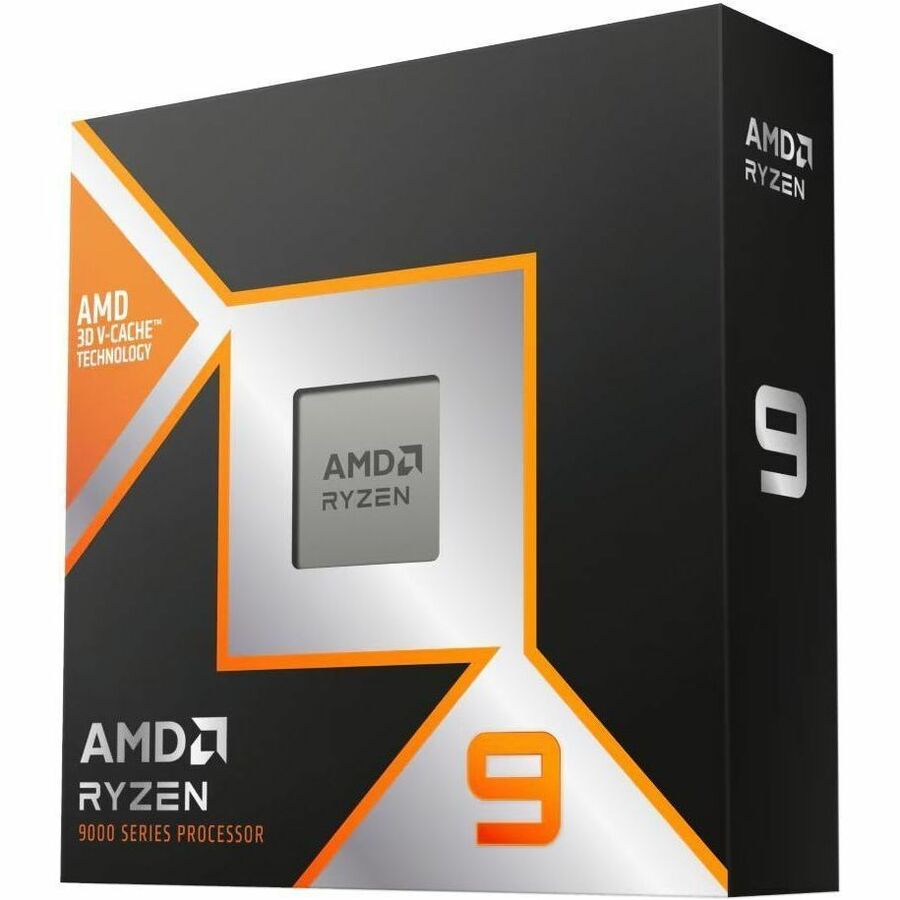

AMD 100-000000719 Ryzen 9 9950X3D 16-Core 4.3GHz Socket AM5 Processor
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
AMD Ryzen 9 9950X3D 100-000000719 delivers elite 16-core/32-thread performance with a 4.3 GHz base clock, 5.7 GHz boost, 128MB L3 cache, and 170W TDP, featuring Socket AM5, integrated Radeon Graphics, dual-channel DRAM support up to 192GB, and AMD EXPO/Ryzen technologies for top-tier computing workloads.
Specifications
Model Number:100-000000719
Brand: AMD
Alt Part Number(s):100-000000719
Product Type: Processor
Technical Description
Brand: AMD
Model:100-000000719
Family: Ryzen
Series: Ryzen 9000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Regional Availability: Global
Former Codename: Granite Ridge AM5
Processor Architecture: Zen 5
# of CPU Cores: 16
Multithreading (SMT): Yes
# of Threads: 32
Max. Boost Clock: Up to 5.7 GHz
Base Clock: 4.3 GHz
L1 Cache: 1280 KB
L2 Cache: 16 MB
L3 Cache: 128 MB
Default TDP: 170 W
Processor Technology for CPU Cores: TSMC 4nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
Package Die Count: 3
Unlocked for Overclocking: Yes
AMD EXPO Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen Master Support: Yes
CPU Socket: AM5
Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES, AVX512, AVX2, AVX, FMA3, MMX-plus, SSE2, SSE4.2, SSE4A, SSE4.1, SSE3, SSSE3, SSE, x86-64
Thermal Solution (PIB): Not Included
Recommended Cooler: Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 95 °C
OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps): 4
Native USB 2.0 (480Mbps): 1
PCI Express Version: PCIe 5.0
Native PCIe Lanes (Total/Usable): 28 / 24
NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 192 GB
System Memory Subtype: UDIMM
ECC Support: Yes (Requires motherboard support)
Graphics Model: AMD Radeon Graphics
Graphics Core Count: 2
Graphics Frequency: 2200 MHz
USB Type-C DisplayPort Alternate Mode: Yes
Max Memory Speed:
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
*
