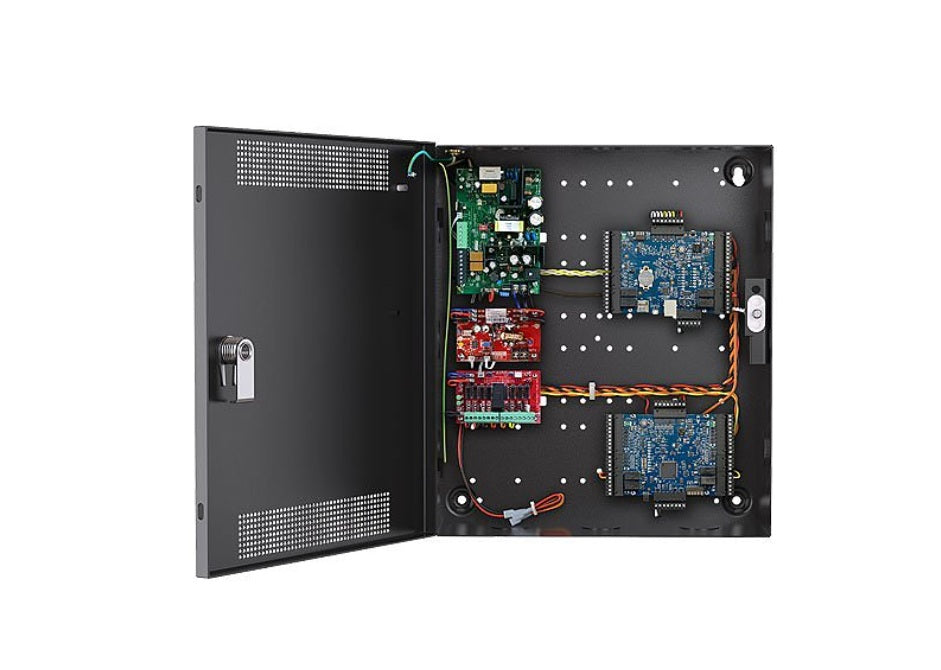

Alarm.com ADC-AC-X1100-4PSE HID Aero 3 or 4 Door Access Control Panel
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Alarm.com ADC-AC-X1100-4PSE is a complete, pre-assembled commercial access control kit. It is designed to fully power and manage a 3- or 4-door system from a single enclosure
Specifications
Model Number: ADC-AC-X1100-4PSE
Brand: Alarm.com
Alt Part Number(s): ADC-AC-X1100-4PSE
Product Type: Door Access Control Panel
Technical Description
Brand: Alarm.com
Model: ADC-AC-X1100-4PSE
Series: HID Aero
Doors: 3 or 4 Doors
Reader Inputs: 4 total
Relay Outputs: 8 total
Programmable Inputs: 8 total
Controller Input Power: 12–24 VDC ±10%, 1.9 A max
Expansion Module Input: 12–24 VDC ±10%, 1.5 A max
Reader Output: 12 VDC ±10%, 500 mA max per reader
Communication: Shielded 2-wire RS-485
Relay Rating: 5 A NO / 3 A NC @ 30 VDC
AC Input: 120 / 208 / 230 VAC, 50/60 Hz
Main Power Outputs: 2 A @ 12 VDC; 2 A @ 24 VDC
Auxiliary Output: 1.5 A, Class II, power-limited
F8P Outputs: 2 A Class II, power-limited
Battery Charging: 0.7 A or 1.60 A selectable
