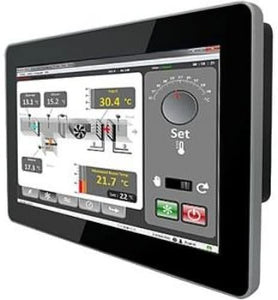

AIS IPW10ID3S-H1-POE-PCT 10.1-Inch TFT Multi-Touch Conference Room Scheduling System
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The AIS 10.1" PoE multi-touch screen conference room scheduling system or industrial comfort control panel which is fully-integrated‚ Commercial Off-the-Shelf (COTS) unit that combine high-performance Intel® Atom™ Dual Core Processor N2600 1.60 GHz, Power over Ethernet (PoE) Technology, and Projected Capacitive Touch (PCT) Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT Technology is a capacitance system that delivers a sensitive and accurate two-touch interactive experience. As the enterprise workspace evolves with more and more end devices for communication, collaboration, security, and productivity.
Specifications
Model Number: IPW10ID3S-H1-POE-PCT
Brand: AIS
Alt Part Number(s): IPW10ID3S-H1-POE-PCT
Product Type: Conference Room Scheduling System
Technical Description
Brand: AIS
Model: IPW10ID3S-H1-POE-PCT
Display: 10.1" diagonal, Active matrix TFT LCD
Native (Optimal) Resolution: 1024 x 600 WSVGA
Aspect Ratio: 16:10 (Widescreen)
Contrast Ratio (Typical): 500:1
Active Area: 220.416 (H) x 129.15 (V) mm
Brightness (Typical): LCD Panel: 200 nits , PCT Touch: 180 nits
Viewing Angle (Typical): Horizontal: 140° Total , Vertical: 110° Total
Processor: Intel® Atom™ Dual Core Processor N2600 1.60 GHz
System Chipset: Intel® NM10 Express Chipset
System Memory: 2GB DDR3 800/1066 MHz, up to 4GB
Serial Ports: 1 x RS232/422/485
USB Ports: 2 x USB 2.0
Ethernet Ports: 1 x RJ-45 (PoE/LAN)
Digital IO Ports: 2 x DI , 2 x DO
Operating: 0°C to 50°C (32°F to 122°F)
Storage: -20°C to 60°C (-4°F to 140°F)
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Dimensions (W x H x D): 263.28 x 171 x 35.70 mm
Features
Powered via Power-over-Ethernet (PoE)
Easy-to-clean, true flat front surface without bezel
Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
Two independent touch points (with Windows 7 operating system)
Eliminates dust and debris build-up at the edge and corners of the display
Provides improved power efficiency and reduced consumption
Responds to a light touch to activate response
Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings
*
