- Overview

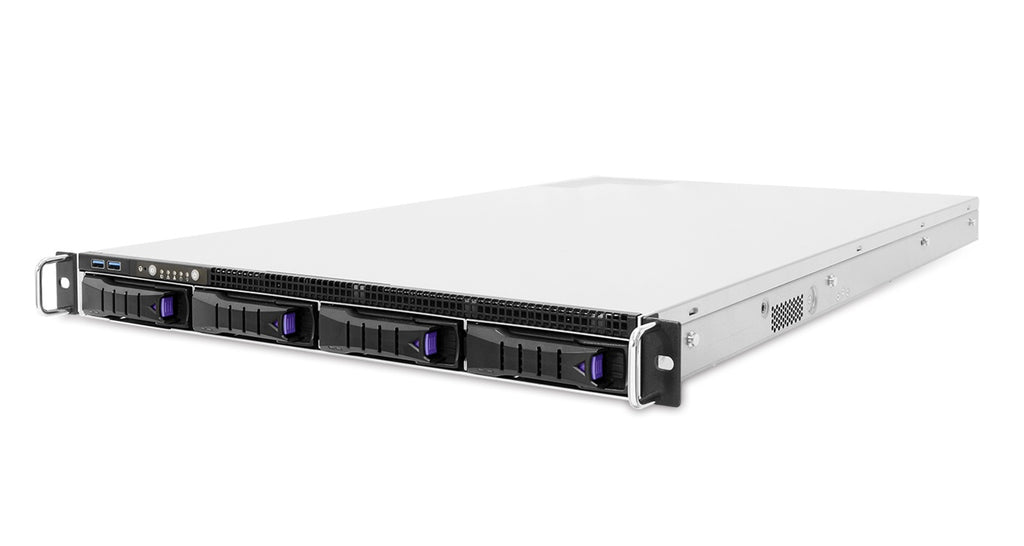

The AIC XP1-S101UR01 is a 1U rackmount server barebone system part of the SB101-UR series. It is a general-purpose storage server designed for the Intel Xeon Scalable processor family
Specifications
Model Number: XP1-S101UR01
Brand: AIC
Alt Part Number(s): XP1-S101UR01
Product Type: Barebone Server
Technical Description
Brand: AIC
Model Number: XP1-S101UR01
Series: SB101-UR
Processor Type: Dual 1st/2nd Gen Intel Xeon Scalable
Processor Core: 56 Core/112 Thread
Processor Power: Up to 140W per CPU
Processor Socket: Dual LGA 3647 (Socket P0)
Motherboard: AIC Ursa
Chipset Type: Intel Lewisburg C620
Graphics Controller: Integrated Aspeed AST2500
Networking: 2 x 10GbE SFP+ ports
Number of Drive Bays: 4 × 3.5" / 2.5" SATA/SAS hot-swap
Internal Bays: 2 × 2.5" SSD (OS drives)
Expansion Slots: 1 x PCIe 3.0 x16 slot, 1 x PCIe 3.0 x8 slot Full-height, half-length (via riser)
Memory Supported: 6.144TB
Memory Size: 256GB
Memory Technology: DDR4
Memory Speed: Up to 2933MHz
Memory Slots: 24 (12 slots per CPU)
Power Supply: 550W redundant (1+1), 80+ Platinum
System Cooling: 7 x40x28mm Fans
Form Factor: 1U Rackmount
