- Overview

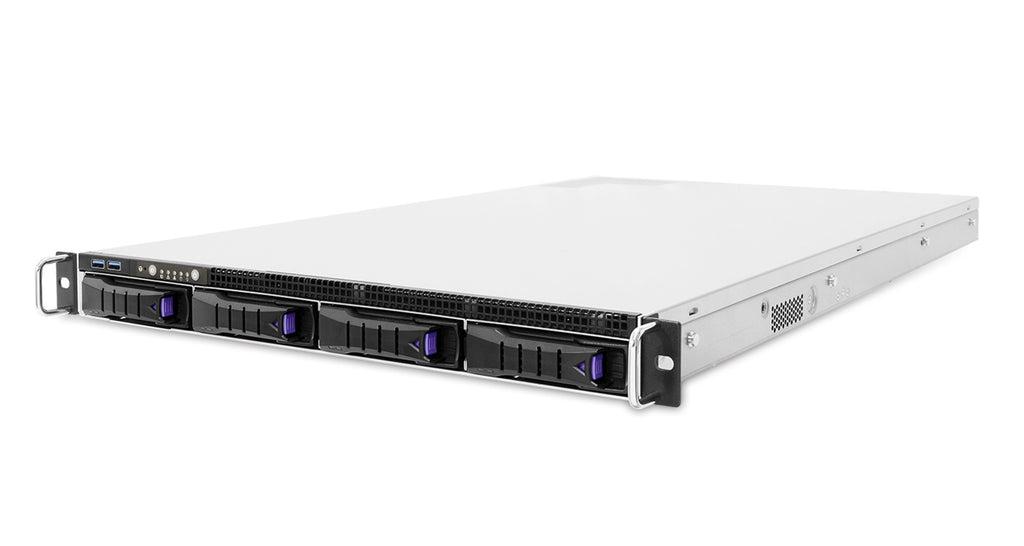

The AIC XP1-S101LE01 is a 1U rackmount storage server barebone system from the SB101-LE series. Unlike the newer Xeon Scalable models, this specific configuration is designed for the Intel Xeon E3-1200 v5 and v6 product families
Specifications
Model Number: XP1-S101LE01
Brand: AIC
Alt Part Number(s): XP1-S101LE01
Product Type: Barebone Server
Technical Description
Brand: AIC
Model Number: XP1-S101LE01
Series: SB101-LE
Processor Type: Intel Xeon E3-1200 v5/v6
Processor Core: 4 Core/8Thread
Processor Power: TDP up to 79W
Processor Socket: LGA 1151 (Socket H4)
Chipset Type:Intel C232
Motherboard: AIC Antlia server board
Graphics Controller: Aspeed AST2400
Ports: 4x USB 3.0 Type A Ports (rear), 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 dedicated for BMC management Port
Networking: 2x RJ45 LAN Ports
Number of Drive Bays: 4 × 3.5″ hot‑swap + 4 × 2.5″ internal
Expansion Slots: 1 x PCIe 3.0 x16 slot
Memory Supported: 64GB
Memory Size: Up to 16GB each
Memory Technology: DDR4
Memory Speed: 2400/2133MHz
Memory Slots: 4 x DIMM slots
Power Supply: 400W single 80+ Gold
System Cooling: 4 x high-pressure fans for front-to-back airflow
Form Factor: 1U Rackmount
