Description
Overview
The Series 6 family of high-performance Adaptec Unified Serial (SATA/SAS) RAID controllers offers maximum performance, scalability and reliability. With the enhanced bandwidth of its 6 Gb/s SAS2.0 interfaces and the PCIe Gen2 host connection it offers up to 60% higher sustained sequential throughput than previous generation controllers. Based on PMC-Sierra's market-leading, multi-core SRC 8x6G RAID-on-Chip (RoC) the Adaptec RAID 6805 can deliver up to 2 GB/s sustained data transfer rate to the host. Peak performance is up to 4.8GB/s through the SAS 2.0 interfaces and 4.0GB/s through the PCIe Gen2 host interface. Using SAS expanders, it can connect up to 256 SATA/SAS. The Adaptec RAID 6805 supports a broad range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager for centralized management of all Adaptec RAID controllers on the network.
Specifications
Model Number: 2270200-R
Brand: Adaptec
Alt Part Number(s): 2270200-R
Product Type: Controller Card
Technical Description
Brand: Adaptec
Model: 2270200-R

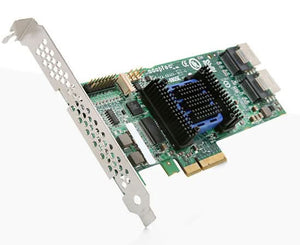

Product Name: Adaptec RAID 6445 Single
Product Type: SAS Controller
Host Interface: PCI Express 2.0 x8
Controller Type: 6Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 10, 1E, 5, 6, 50, 60, JBOD
Total Number of SAS Ports: 8
Number of SAS Ports (Internal): 4
Number of SAS Ports (External): 4
Form Factor: Plug-in Card
Limited Warranty: 3 Year
Green Compliant: Yes
Green Compliance Certificate / Authority: RoHS
Features
6 Gb/s throughput at each port
PMC-Sierra PM8013 Dual Core RAID on Chip (ROC)
SAS 2.0 interfaces and PCIe Gen 2 Host Connection
Low Profile, MD2 Form Factor
Supports up to 256 SAS/SATA drives
Enclosure management support via LED header and SES2/SGPIO
Hybrid RAID 1 & 10: SSD + HDD for Maximum Performance and Reliability
Intelligent Power Management Reduces power and cooling costs by as much as 70%
Zero-Maintenance Cache Protection Kit Option
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
