Enabling the onboard cache on a RAID adapter card signi cantly enhances performance - especially in RAID 5 and RAID 6 scenarios - by accommodating both read caching and write caching of data. But data stored in the cache for write caching can be lost if the cache is not protected against a power or system failure. Lithium-ion (Li-ion) battery backup units (BBUs) are traditionally employed to protect cached data on RAID adapters. Once installed, a new BBU will take several hours to reach a full charge. During the charge cycle, write cache is unprotected (i.e. turned o ), which adversly a ects the RAID adapter's performance. A typical BBU requires routine capacity testing and performs sub-optimally during those test periods. Lastly, a fully-charged BBU can only preserve data for a maximum of 72 hours during a power loss before the battery power depletes.
Model Number: 2275400-R
Alt Part Number(s): 2275400-R
Product Type: Flash Module

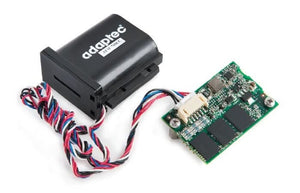

Product Name: Flash Module 700 (AFM-700) for Series 7 & 8 Including Series 7Q & 8Q Adapters
Product Type: Battery Backed Write Cache
Memory Size: 2 GB
Device Supported: RAID Controller
Environmentally Friendly: Yes
Environmental Certification: RoHS
Electrical Outlet Plug Type: Plug Type “A” (USA, Canada, Mexico, Japan)
3rd Gen Zero-Maintenance Cache Protection
Maximum Data Protection and Cost Savings for Adaptec Series 7 and Series 7Q RAID Adapters
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
