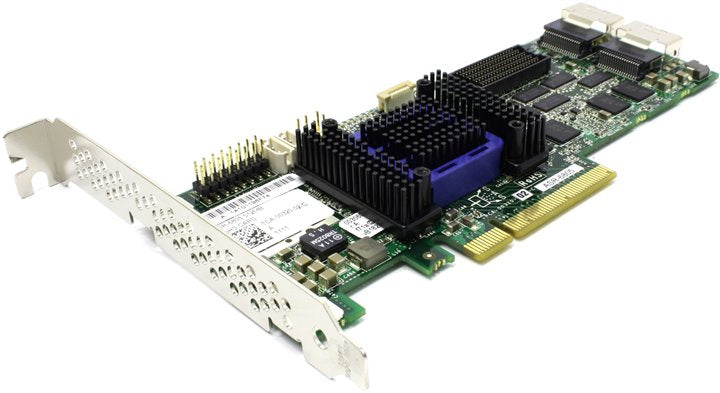

The Series 6 family of high-performance Adaptec Unified Serial (SATA/SAS) RAID controllers offers maximum performance, scalability and reliability. With the enhanced bandwidth of its 6 Gb/s SAS2.0 interfaces and the PCIe Gen2 host connection it offers up to 60% higher sustained sequential throughput than previous generation controllers. Based on PMC-Sierra's market-leading, multi-core SRC 8x6G RAID-on-Chip (RoC) the Adaptec RAID 6805 can deliver up to 2 GB/s sustained data transfer rate to the host. Peak performance is up to 4.8GB/s through the SAS 2.0 interfaces and 4.0GB/s through the PCIe Gen2 host interface. Using SAS expanders, it can connect up to 256 SATA/SAS. The Adaptec RAID 6805 supports a broad range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager for centralized management of all Adaptec RAID controllers on the network.
Model Number: ASR-6805
Alt. Part Number(s): ASR-6805
Product Type: Controller Card
Type: SATA / SAS
Internal Connectors: 2 x SFF-8087 mini-SAS
Interface: PCI-Express 2.0
Transfer Rate: Up to 6Gb/s
Cache Memory: 512MB of DDR2 667MHz
RAID: RAID 0, 1, 1E, 5, 5EE, 6, 10, 50, 60 and JBOD
Operating Systems Supported
Windows Server 2008/2008 R2
VMware ESX Classic 4.x (vsphere)
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Sun Solaris 10 x86
PMC-Sierra PM8013 Dual Core RAID on Chip (ROC)
Enclosure management support via LED header and SES2/ SGPIO
Intelligent Power Management – Reduces power and cooling costs by as much as 70%
