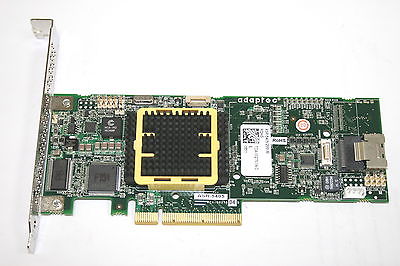

Adaptec ASR-5405/256MB 256Mb DDR2 Quad-Ports 8x PCI-Express Internal SAS / SATA Raid Controller Card
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
| Specifications | |
| Model Number | ASR-5405/256MB |
| Condition | |
| Brand | Adaptec |
| Alt Part Number(s) | ASR-5405/256MB |
| Type | Controller Card |
| Technical Description | |
| Brand | Adaptec |
| Model | ASR-5405/256MB |
| Type | SATA / SAS |
| Internal Connectors | 1 x SFF-8087 Mini SAS |
| Interface | PCI-Express x8 |
| Transfer Rate | 3 Gb/s per port |
| Cache Memory | 256MB of DDR2 memory |
| RAID | RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD |
| OS Supported | Microsoft Windows, Red Hat Linux, SUSE Linux, SCO OpenServer, UnixWare, Sun Solaris, FreeBSD, VMware ESX |
| Dimensions | 2.5" H x 6.6" L, MD2 Low-Profile |
| Features | |
| RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50*, 60*, JBOD (* Expander is necessary) | |
| Supports 4 direct-attached or up to 256 SATA or SAS disk drives using SAS expanders | |
| 1.2GHz Dual Core RAID on Chip (ROC) | |
| Adaptec Storage Manager, Copyback Hot Spare management features | |
| RoHS compliant | |
|
* | |
