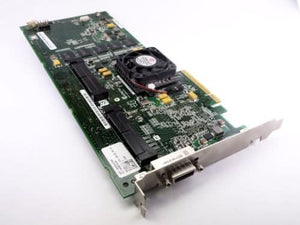

Adaptec 4805SAS ASR-4805SAS 39R8785 PCI-Express 8-Port SAS Raid Controller Card

$325.00 Regular price
Sale price$325.00
AdaptecSKU: 51586
Model Number: 4805SAS
Alt. Part Number: ASR-4805SAS / 39R8785
Condition: Refurbished
In stock:  Yes
No reviews



High-performance storage connectivity and data protection for servers and workstations. Ideal for supporting server and workgroup applications where high levels of sustained read and write operations are required, such as video streaming, web content, video-on-demand, security and surveillance, fixed content, and reference data storage. Departmental and workgroup servers and workstations



Model Number:  ASR-4805SAS

Brand:  Adaptec

Alt. Part Number(s):  ASR-4805SAS

Product Type:  Controller Card


Technical Description

Brand:  Adaptec

Model:  ASR-4805SAS

Bus System Interface Type:  8-lane PCIe host interface

External Connectors:  One x4 SAS connector SFF-8470

Internal Connectors:  Two x4 SAS connectors SFF-8484

Data Transfer Rate:  Up to 3Gb/s per port.

System Requirements:  Intel or AMD architecture with available 8-lane PCIe slot. Supports EM64T and AMD64 architectures

Standard RAID Levels:  RAID 0, 1, 10, 5, 50

Optional RAID Features:  Snapshot Backup (2228200)

Board Dimensions:  9.44in x 4.53in / 24cm x 11.5cm

Operating Temperature:  0 to 55 degrees C

Regulatory Certification:  FCC, UL, C-tick, CE, VCC

Mean Time Before Failure (MTBF):  816,342 hours at 40 degrees C

Operating Systems:  Microsoft Windows, Red Hat Linux, SUSE Linux, Novell NetWare, FreeBSD, VMware, Solaris, SCO Unix



Striped Mirror (RAID 1E)

Hot Space (RAID 5EE)

Dual Drive Failure Protection (RAID 6, 60)

Copyback Hot Spare


*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
