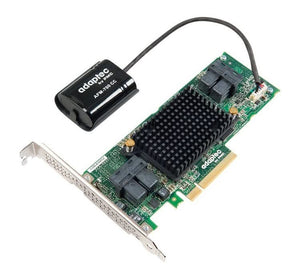

Adaptec 2281600-R 8Q Series PCI Express 3.0 x8 16-Ports SAS SATA Raid Controller

Overview

The Adaptec maxCache Plus solution introduces a revolutionary new tiering software for direct-attach- storage data management. Our new tiering solution is a secured (non-opened source) filter driver. The architecture establishes a presence in the management layer of the host server and can manage any underlying hardware. The solution supports any/all block-level storage devices and structures it as storage space, with enhanced granularity of fast/faster/fastest media recognition. The Series 8 "Q" products are equipped with maxCache Plus, supporting both caching and tiering functionality. This technology allows IT managers, system integrators, and ISV's to garner the fastest performance and best overall value from their storage assets. It provides flexibility to configure any & all storage devices in server environments and allows for the fastest media to be used as storage instead of just cache, maximizing the use of the newest 12Gb/s drives.



Specifications

Model Number:  2281600-R

Brand:  Adaptec

Alt Part Number(s):  ASR-81605ZQ

Product Type:  SAS Raid Controller



Technical Description

Brand:  Adaptec

Model:  2281600-R / ASR-81605ZQ

Product Name:  Adaptec RAID 81605ZQ Single

Product Series:  8Q

Product Type:  SAS Controller

Host Interface:  PCI Express 3.0 x8

Controller Type:  12Gb/s SAS

RAID Supported:  Yes

RAID Levels:  0, 1, 1E, 5, 6, 10, 50, 60

Total Number of SAS Ports:  16

Number of SAS Ports (Internal):  4

SAS Connector Details:  4 SFF-8643

Height:  2.5"

Width:  6.6"

Form Factor:  Plug-in Card

Platform Supported:  PC, SPARC

Environmentally Friendly:  Yes

Environmental Certification:  RoHS

Card Height:  Low-profile



Features

MC's PM8063 RAID-on-Chip (ROC), x8 PCIe Gen3 interface

with 12Gb/s SAS ports to enable a new generation of performance

16 native SAS/SATA ports in a LP/MD2 design

12Gb/s throughput with mini SAS HD connectors

>700K IOPS; 6.6GB/s sequential reads, 5.2GB/s sequential writes
