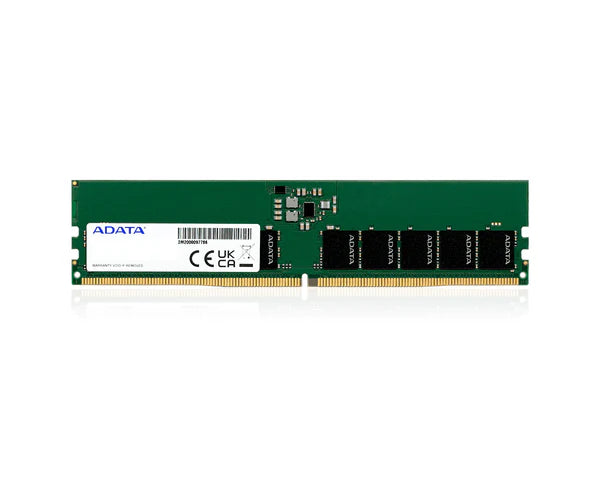

ADATA AD5E560016G10-BHYA 16GB DDR5-5600 288-Pin ECC U-DIMM Memory Module
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
ADATA AD5E560016G10-BHYA DDR5 Memory Module series features 16GB DDR5 SDRAM capacity, 5600 MHz speed, PC5-44800 standard, 1.10V operating voltage, 288-pin DIMM form factor, unbuffered ECC U-DIMM design, and on-die ECC error checking. This JEDEC-compliant memory module supports DDR5 interface technology with 5600 MT/s frequency, RoHS compliance, and operating temperatures from 0ºC to 85ºC standard and -40ºC to 95ºC industrial.
Specifications
Model Number:AD5E560016G10-BHYA
Brand: ADATA
Alt Part Number(s):AD5E560016G10-BHYA
Product Type: Memory Module
Technical Description
Brand: ADATA
Model: AD5E560016G10-BHYA
Memory Size: 16GB
Memory Technology: DDR5 SDRAM
Memory Voltage: 1.10 V
Memory Speed: 5600 MHz
Memory Standard: DDR5-5600/PC5-44800
Error Checking: On-die ECC
Signal Processing: Unbuffered
Number of Pins: 288-pin
Form Factor: DIMM
Interface: DDR5
Module Type: ECC U-DIMM
Frequency: 5600 MT/s
Capacity: 16GB
Pin Count: 288 Pin
PCB Height: 1.23 inches/3.12cm
Operating Voltage: 1.1V
Operating Temperature(Standard): 0ºC to 85ºC
Operating Temperature(Industrial): -40ºC to 95ºC
Standard: JEDEC
RoHS: Yes
