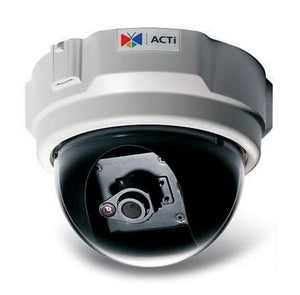

ACTi ACM-3401 Megapixel IP Fixed Dome Network Security Camera
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
As with many great imaging technologies, the concept of a megapixel camera gradually made its way from the photo/video world into the CCTV industry. Because of its higher resolution, a megapixel surveillance camera can provide the level of detail not available with a conventional camera. This makes it a wise choice for applications needing a higher degree of security like banks, museums and government facilities.
Specifications
Model Number: ACM-3401
Brand: ACTi
Alt Part Number(s): ACM-3401
Product Type: Network Security Camera
Technical Description
Brand: ACTi
Model: ACM-3401
Image Sensor: 1/3" Color Micron Progressive Scan CMOS
Resolution: 1280 x 1024
Lens: Focal Length - 4.2mm, F1.8
Horizontal Viewing Angle: 75°
Iris Operation: Fixed
Pan & Tilt: Pan: 0-170°, Tilt: 0-90°
Minimum Illumination: 0.5 Lux
Signal to Noise Ratio: >44dB
IR Illumination: No
Analog Video Output: No
Built-In Microphone: No (mic input)
Audio Input: 3.5mm x1 (mini mono)
Audio Output: 3.5mm x1 (mini mono)
Motion Detection: Yes (3 windows)
Alarm I/O: No
Control Connectors: N/A
Compression Format: MPEG-4 SP, MJPEG selectable
Picture Size: 1280 x 1024, 1280 x 720, 640 x 480, 320 x 240, 160 x 120
Frame Rate: 8 FPS at 1280 x 1024, 10 FPS at 1280 x 720, 30 FPS at 640 x 480, 30 FPS at 160 x 120
Supported Protocols: TCP, UDP, IP, HTTP, DHCP, PPPoE, RTP, RTSP,FTP,SMTP,DNS,DDNS,NTP,ICMP,IGMP,ARP,3GPP
Card Slot: No
Web Browser Access: Yes (with included ACTi SDK-10000 software)
Simultaneous Client Access: Yes
Multiple Camera Views: Yes
Network Interface: Ethernet(10/100 Base-T), RJ-45 connector
System Requirements: Microsoft Internet Explorer 6.0 or above
Power Requirements: 12VDC or PoE (IEEE802.3af with class 3)
Power Consumption: DC: 3.3W, PoE:4.3W
Operating Temperature: 14 - 122°F (-10 ~ +50°C)
Diameter and Height: 5.1 x 3.9" (130 x 99mm)
*
