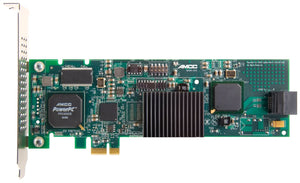

3Ware 9650SE-2LP 128Mb DDR2-533MHz SATA-II Raid PCI-Express Low Profile Controller Card

Specifications

Model Number:  9650SE-2LP

Brand:  3Ware

Mfr Part Number:  9650SE-2LP

Type:  Controller Card



Technical Description

Brand:  3Ware

Model:  9650SE-2LP

Type:  SATA II (3.0Gb/s)

Port Count:  2

Connector Type:  Discrete

PCI Express Lanes:  1

Cache Memory:  128 MB DDR2 533

RAID:  RAID Levels 0, 1, Single Disk, JBOD

OS Supported:  Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux, Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD

Dimensions:  7.3" x 2.7"



Features

BBU Support: No

Form Factor: Low Profile

8th-generation StorSwitch non-blocking switched architecture

On-board I/O RISC processor and RAID offload provides true hardware RAID

SCSI device driver model to take advantage of the benefits of SCSI using inexpensive Serial ATA drives

Bootable array support for greater fault tolerance.

Variable stripe size for performance tuning by application.

64-bit LBA support

64-bit LBA support.

ATA pass-through mode support

SNMP support.

SMTP support for email/pager notification

Multiple logical unit sizes and RAID levels on one card.

Multiple card support within a system for large storage requirements.

Hot-swap and hot-spare support for data availability.

Dynamic sector repair for robust data protection.

S.M.A.R.T. disk drive monitoring for reliability.

Emergency Flash Recovery protects against failed firmware upgrade
