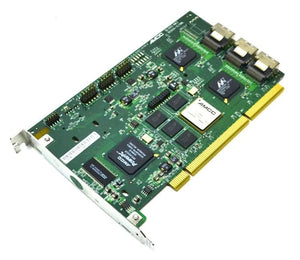

3Ware 9550SXU-12ML 300Mbps PCI-X 133MHz SATA-3.0Gbps Raid Storage Controller

Specifications

Model Number:  9550SXU-12ML

Brand:  3Ware

Alt Part Number(s):  9550SXU-12ML

Product Type:  Storage Controller



Technical Description

Brand:  3Ware

Model:  9550SXU-12ML

Host Bus:  PCI-X/133 MHz

Interface:  SATA 3Gb/s

Data Transfer Rate:  300 MBps

Buffer Size:  256 MB (installed) / 256 MB (max)

Supported Devices:  Disk Array (RAID), hard drive

Max Storage Devices Qty:  12

RAID Level:  JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50

Processor:  AMCC PowerPC 405CR

Interface Type:  Serial ATA-300

Compliant Standards:  Plug and Play, FCC, RoHS

Microsoft Certifications:  Compatible with Windows 7

Connector Type:  36 pin 4i Mini MultiLane SAS (SFF-8087)

Connector Location:  Internal

OS Required:  FreeBSD, Linux 2.4, Linux 2.6, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003, Red Hat Fedora Core, Red Hat Linux, SuSe Linux

Form Factor:  Half-Length

Min Operating Temperature:  32 °F

Max Operating Temperature:  122 °F

Depth:  6.9 in

Height:  4.2 in



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
