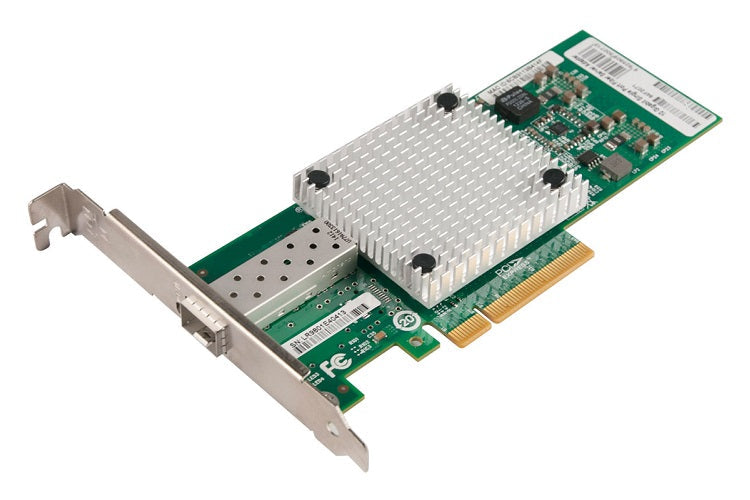

Qlogic QLE8240-CU-CK 10Gbps PCI-Express 2.0 x8 Plug-in Network Adapter

Overview

The 8200 series of converged network adapter supports simultaneous LAN (TCP/IP) and SAN (FCoE, iSCSI) traffic at line-rate, 10 Gbps Ethernet speed. The adapter interfaces to the host server with a PCIe Gen2 x8 bus, ensuring no internal performance bottlenecks.



Specifications

Model Number:  QLE8240-CU-CK

Brand:  Qlogic

Alt Part Number(s):  QLE8240-CU-CK

Product Type:  Network Adapter



Technical Description

Brand:  Qlogic

Model:  QLE8240-CU-CK

Compliant Standards:  IEEE 802.1p , IEEE 802.1Q , IEEE 802.3ad (LACP) , IEEE 802.3ae , IEEE 802.3az , IEEE 802.3x

Connectivity Technology:  Wired

Data Link Protocol:  10 Gigabit Ethernet

Data Transfer Rate:  10 Gbps

Fibre Channel:  FC-GS-2 , FC-GS-3 , FC-Tape , FCP-2

Form Factor:  Plug-in card

Interface Type:  PCI Express 2.0 x8

Low Profile:  Low profile

Network Transport Protocol:  iSCSI , TCP/IP , UDP/IP

PCI Specification Revision:  PCIe 2.0

Type:  Network Adapter

Depth:  6.6 in

Height:  2.6 in



Features

Data Center Bridging Exchange (DCBX) support

Enhanced transmission selection

Flow control

Full duplex capability

IPv6 support

Jumbo Frames support
