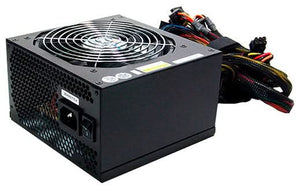

Zalman ZM360B-APS 360Watts 20+4Pin Dual Ball-Bearing ATX Power Supply Unit
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
| Specifications | |
| Model Number | ZM360B-APS |
| Condition | New |
| Brand | Zalman |
| Mfr Part Number | ZM360B-APS |
| Type | Power Supply Unit |
| Technical Description | |
| Brand | Zalman |
| Model | ZM360B-APS |
| Type | ATX12V V2.2 / EPS12V V2.91 |
| Maximum Power | 360W Continuous @ 45°C |
| Fans | 1 x Dual Ball-Bearing 120mm Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6-Pin |
| SATA Power Connector | 4 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | No |
| Efficiency | Up to 80% @ 230VAC, Full & Typical Load |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 5 - 3A |
| Output | +3.3V@22A, +5V@21A, +12V1@11A, +12V2@15A, -12V@0.5A, +5VSB@2.5A |
| Approvals | CB, CE, cUL |
| Dimensions | 5.9"(L) x 5.5"(W) x 3.4"(H) |
| Connectors | |
| 1 x Main connector (20+4Pin) | |
| 1 x 12V(4+4Pin) | |
| 4 x peripheral | |
| 4 x SATA | |
| 2 x Floppy | |
| 2 x PCI-E | |
| Features | |
| Ultra Quiet 120mm Fan | |
| Two Independent +12VDC Outputs | |
| Active PFC: PF Up To 99% & Reduces Distortion | |
| Sleeved Cables | |
| Gold-Plated Terminals & 16AWG Wires | |
| EZ Grip Connectors for ODDs & HDDs | |
| ATX 20+4Pin Main Connector | |
| ATX12V CPU 4-Pin & EPS12V CPU 8-Pin | |
| 2 x PCI Express Power 6Pin | |
| Over-Voltage Protection | |
| Over-Current Protection | |
| Short-Circuit Protection | |
| Under-Voltage Protection | |
| Over-Temperature Protection | |
| Complies With WEEE & ROHS | |
* | |
