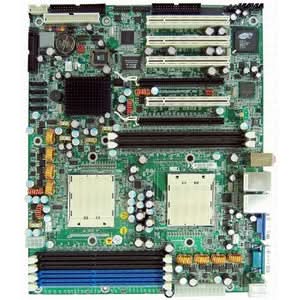

TYAN Socket-Dual 940 DDR-400/333/266 Dual Channel 4x SATA 3Gb/s V/L ATX Mother Board (S2877G2NR-RS)
Roll over image to zoom in Click on image to zoom
TYAN Socket-Dual 940 DDR-400/333/266 Dual Channel 4x SATA 3Gb/s V/L ATX Mother Board (S2877G2NR-RS)

TYAN Socket-Dual 940 DDR-400/333/266 Dual Channel 4x SATA 3Gb/s V/L ATX Mother Board (S2877G2NR-RS)

Price:
$299.00
TyanSKU: 860788
Model Number: S2877G2NR-RS
Condition: OEM Bulk
In stock:  Yes
No reviews

Description

Founded on NVIDIA nForce Professional core-logic, the Tiger K8WE (S2877) Server Board delivers efficiency and performance with 64-bit scalable technology, support for Dual Core AMD Opteron 200 series processors, a Direct Connect Architecture for low bus latency communications, all of which offer the promise of lightning-fast processing speeds for your workstation and server applications. The Tiger K8WE (S2877) also features an option for built-in server graphics; Serial ATA-II RAID, and up to (2) Gigabit Ethernet network ports. All of this in an ATX form factor, made to fit a large number of widely-available chassis enclosures from popular manufacturers worldwide.

S2877G2NR-RS Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     NVIDIA
  • Chipset Model:     nForce Pro 2200
  • Total Processor Supported:     2
  • Processor Technology:     HyperTransport Technology
  • Processor Socket:     Socket PGA-940
  • Processor Supported:     Opteron

    Memory

  • Number of Memory Slots:     6
  • Maximum Memory:     24 GB
  • Memory Standard:     DDR266/PC2100
  • Memory Standard:     DDR333/PC2700
  • Memory Standard:     DDR400/PC3200
  • Memory Technology:     DDR SDRAM

    I/O Controller

  • Controller Type:     Floppy Controller
  • Controller Type:     Serial ATA/300
  • Controller Type:     Ultra ATA/133 (ATA-7)

    Video

  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Manufacturer:     ATI
  • Graphics Controller Model:     Rage-XL
  • Graphics Controller Memory:     8 MB

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     6
  • Number of PCI Slots:     4
  • Total Number of PCI Express Slots:     2
  • Number of PCI Express x16 Slots:     2

    Interfaces/Ports

  • Total Number of USB Ports:     4
  • Number of USB 2.0 Ports:     4
  • Serial Port:     Yes
  • VGA:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     2
  • Number of SATA Interfaces:     4
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes
  • Onboard Audio Header:     Yes

    Physical Characteristics

  • Width:     12.0"
  • Depth:     9.8"

    Miscellaneous

  • Additional Information:
  • ROHS Compliant
  • AMD Opteron 200 series processors supported

    • Chipset:

  • nForce Professional 2200 (CK8-04)
  • Winbond W83627HF Super I/O
  • Analog Devices (1) ADT7468 Hardware Monitoring

    • System Management:

  • Five fan headers support tachometer monitoring, three of 4-pin fans support smart FAN control (PWM)
  • Temperature and voltage monitoring

    • BIOS Features:

  • Phoenix BIOS on 8Mbit LPC Flash ROM
  • Supports ACPI 2.0; Serial Console Redirect
  • USB device boot
  • 48-bit LBA Support
  • Power management: S0, S1, S4, and S5

    • Supported Operating Systems:

  • Microsoft Windows XP (32bit/64bit)
  • Microsoft Windows Server 2003 (32bit/64bit)
  • SuSE Professional 9.2 (32bit)
  • SuSE Professional 9.3 (32bit)
  • SLES 9.0 + SP2 (64-bit)
  • RHEL 3 Update 4 (64bit)
  • RHEL 4 Update 1 (64-bit)

    Warranty

  • Limited Warranty:     3 Year
