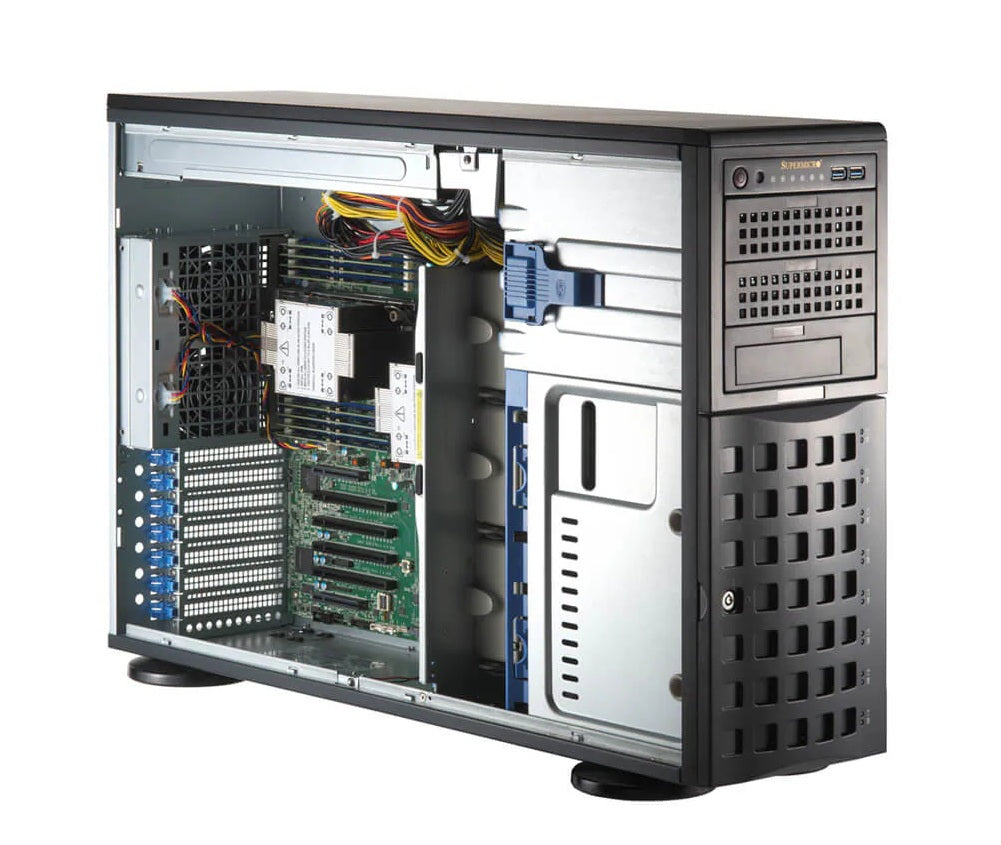

Supermicro X13 Mainstream SYS-741P-TRT 4U Intel Xeon 120 Core 4TB Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Supermicro SYS-741P-TRT is a high-performance 4U/Tower Mainstream SuperServer designed for virtualization, enterprise applications, and compute-intensive workloads. It is built on the Super X13DEI-T motherboard and supports the latest generation of Intel Xeon processors
Specifications
Model Number: SYS-741P-TRT
Brand: Supermicro
Alt Part Number(s): SYS-741P-TRT
Product Type: Server
Technical Description
Brand: Supermicro
Model Number: SYS-741P-TRT
Series: X13 Mainstream SuperServer
Processor Type: 5th Gen/4th Gen Intel Xeon Scalable processors
Processor Core: Up to 120Core/240 Thread
Processor Power: Supports up to 300W TDP CPUs
Processor Socket: Dual Socket E (LGA-4677)
Motherboard: Super X13DEI-T
Chassis: CSE-745BTS-R1K23BP
Supported GPU: 2 Double‑width or 2 Single‑width Cards
Chipset Type: Intel C741
Graphics Controller: ASPEED AST2600 BMC
Networking Connectivity: 2 RJ45 10GbE, 1 RJ45 1GbE Dedicated BMC LAN port
RAID Levels: 0, 1, 5, 6, 10, 50, 60 (With RAID controller)
Number of Drive Bays: 8 x 3.5" bays, 2 x M.2 NVMe, 3 x 5.25" drive bays (Peripheral optional)
Expansion Slots: 2 PCIe 5.0 x8 FHFL slots, 4 PCIe 5.0 x16 FHFL slots, 2 M.2 PCIe 4.0 x2 NVMe slots
Memory Supported: Up to 4TB
Memory Size: Up to 256GB per module
Memory Technology: DDR5 ECC RDIMM
Memory Speed: 5600MT/s
Memory Slots: 16 DIMM slots
Power Supply: 2x 1200W Redundant (1 + 1) Titanium
System Cooling: Up to 3 middle Fan(s) Up to 2 rear Fan(s)
Form Factor: 4U Rackmount
Height: 17.8"
Width: 7"
Depth: 25.5"
