Description
Overview

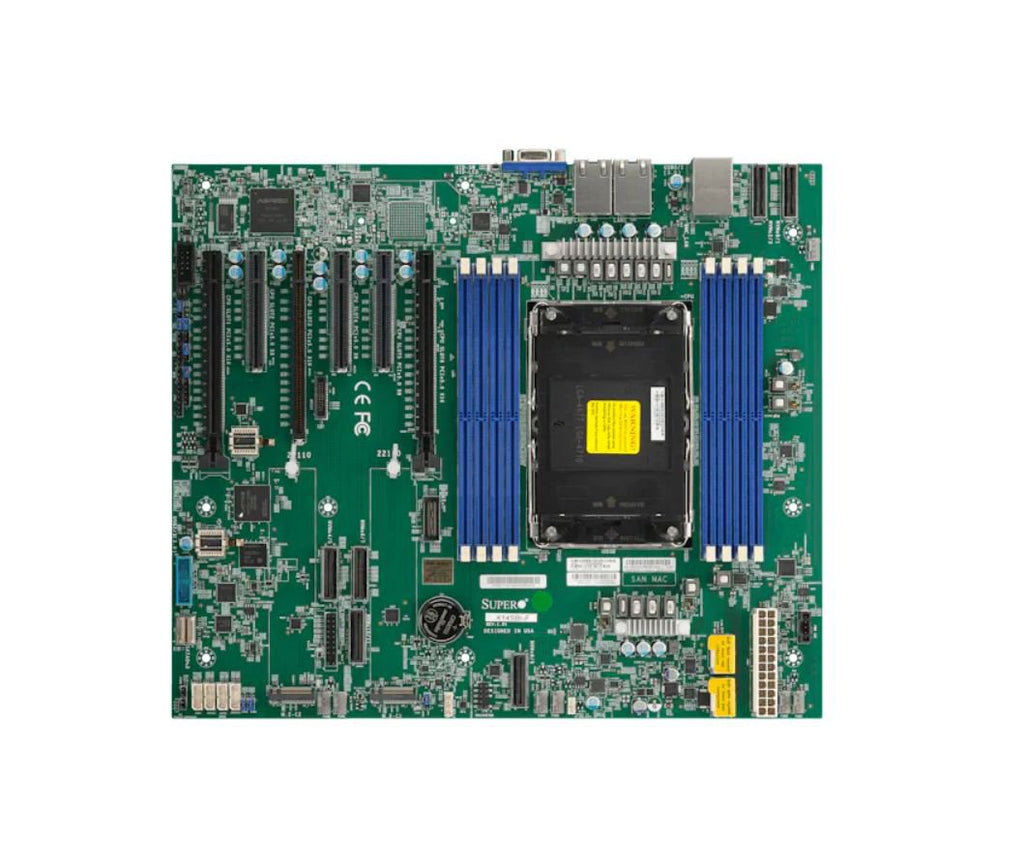

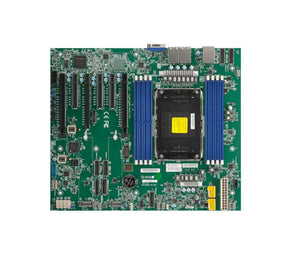

The Supermicro MBD-X14SBI-F-O motherboard supports Intel Xeon 6700/6500 series processors with P-cores on a single LGA-4710 socket, up to 350W TDP. It features PCIe 5.0 x16 for high-performance expansion and scalability in demanding server environments.
Specifications
Model Number: MBD-X14SBI-F-O
Brand: Supermicro
Alt Part Number(s): MBD-X14SBI-F-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model: MBD-X14SBI-F-O
Form Factor: ATX-Compatible (Extended Dimensions)
Dimension: 12.3" x 10.5" (31.24cm x 26.67cm)
CPU: Single Socket E2 (LGA-4710); Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count: Up to 144C
Memory: 8 DIMM Slots; Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only)
Error Detection: Corrects single-bit errors; Detects double-bit errors (ECC memory)
SATA: 4 SATA (6Gbps) via ASMedia ASM1164; via SlimSAS
Network Controller: Dual LAN with 1GbE Intel I210
LAN: 2 RJ45 1 GbE ports; 1 RJ45 1 GbE Dedicated IPMI LAN port
USB: 2 USB 3.2 Gen1 (Header); 2 USB 3.2 Gen1 (Rear)
Video: 1 VGA D-Sub Connector
PCIe Configuration: 3 PCIe 5.0 x8 slots; 3 PCIe 5.0 x16 slots; 6 PCIe 5.0 x8 via MCIO Connector
M.2: 2 M.2 PCIe 5.0 x2 slots (M-key 22110)
BIOS: AMI 64MB UEFI with ACPI 6.5, SMBIOS 3.7+, UEFI 2.9
Security: TPM 2.0
Voltage Monitoring: +12V, +3.3V, +5V, +5V standby; monitors CPU and memory voltages
LED Indicators: CPU/system overheat LED; UID/remote UID LED
Temperature Monitoring: CPU thermal trip support; chassis environment monitoring; PECI; Thermal monitor 2 (TM2)
Fan Headers: 7x 4-pin fan headers with speed control and overheat LED
Other: ACPI power management; chassis intrusion detection; power-on recovery; M.2 NGFF connector; UID; Wake on LAN (WOL)
