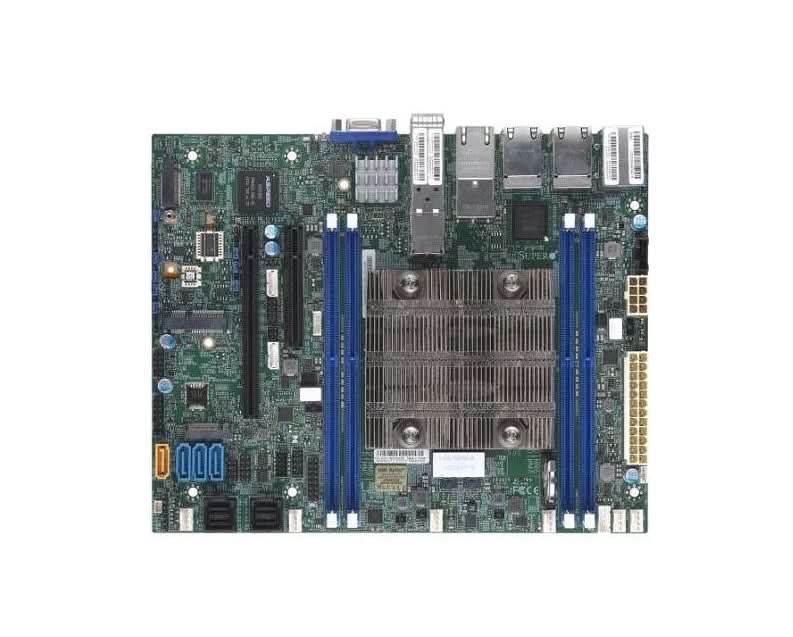

Supermicro MBD-X11SDV-4C-TP8F-B Intel Xeon 4-Cores Flex ATX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-X11SDV-4C-TP8F-B is a Flex ATX server-grade motherboard featuring an integrated Intel Xeon D-2123IT processor, designed for high-performance embedded networking and storage systems.
Specifications
Model Number: MBD-X11SDV-4C-TP8F-B
Brand: Supermicro
Alt Part Number(s): MBD-X11SDV-4C-TP8F-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SDV-4C-TP8F-B
Processor Type: Intel Xeon
Processor Model: D-2123IT
Processor Core: 4 Cores, 8 Threads
ProcessorClock Speed: 2.2GHz Base, up to 3.0GHz Turbo
Chipset Type: System on Chip
Storage Interfaces: 12x SATA3 (6 Gbps) ports
Network: 4x 1GbE RJ45 LAN ports via Intel I350-AM4 controller
RAID: RAID 0, 1, 5, 10
Graphics: ASPEED AST2500 BMC
Memory Capacity: 256GB
Memory Supported: 512GB
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 1 × PCIe 4.0 ×16
Error Detection: ECC
TDP: 60W
Power Input: 12V DC
Form Factor: Flex ATX
*
