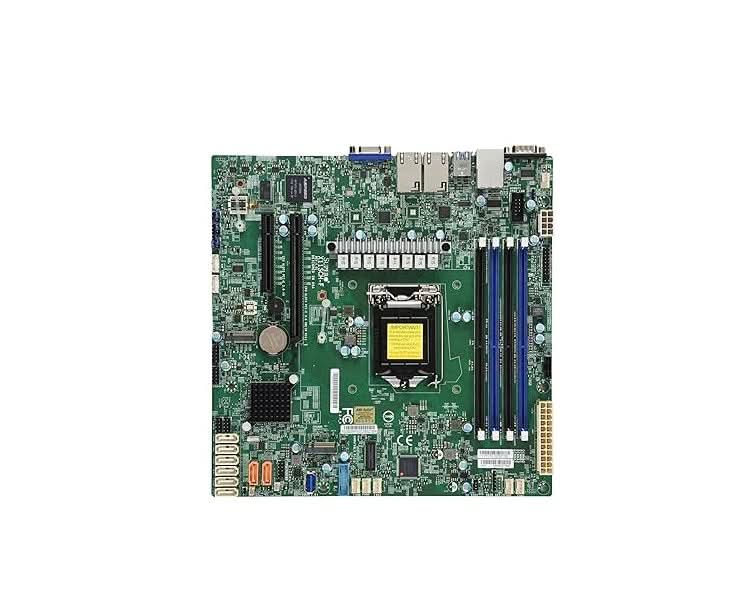

Supermicro MBD-X11SCH-F-O Intel Core i3 8-Core Micro‑ATX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro MBD-X11SCH-F-O is a server-grade Micro-ATX motherboard built on the Intel C246 chipset. Optimized for high-performance computing and enterprise server applications, it supports 8th and 9th Generation Intel processors and features extensive I/O options including dual M.2 slots and dual Gigabit LAN.
Specifications
Model Number: MBD-X11SCH-F-O
Brand: Supermicro
Alt Part Number(s): MBD-X11SCH-F-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-X11SCH-F-O
Series: E-2100/E-2200
Processor Type: Intel Core i3
Processor Socket: LGA 1151 (Socket H4)
Processor Core: 8 Cores/16 threads
Processor Generation: 8th/9th Gen
Chipset Type: Intel C246
Storage Interfaces: 8 SATA3 (6Gbps)ports
Network: DualGigabit Ethernet ports using the Intel i210 controller
USB: Total of 11 ports,USB 3.1 Gen 2, USB 3.1 Gen 1, and USB 2.0 headers
RAID: RAID 0, 1, 5, and 10
Graphics: ASPEED AST2500 BMC
Memory Supported: 128GB
Memory Speed: 2666MHz
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 2 × PCIe 3.0 ×8, 2 × M.2 (PCIe 3.0 ×4)
Error Detection: ECC
TDP: 95W
Form Factor: Micro‑ATX
*
