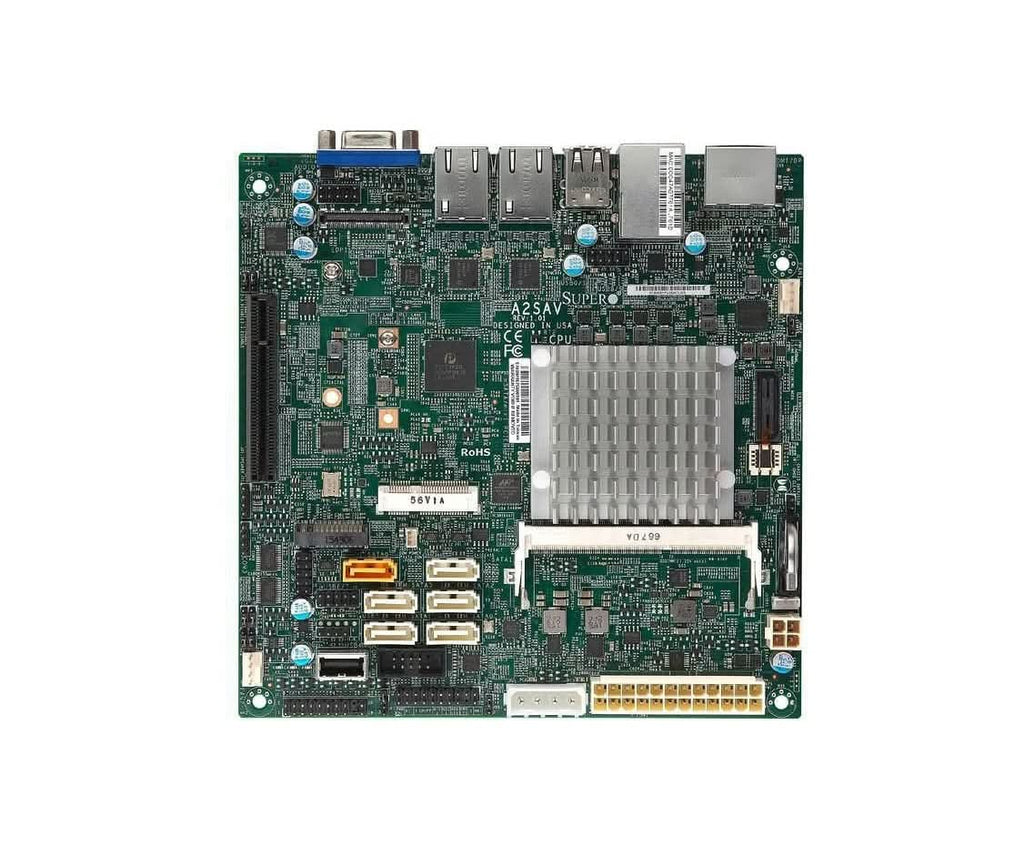

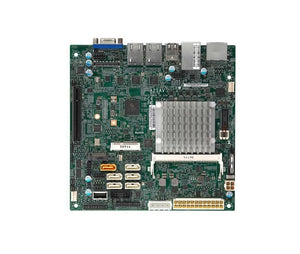

Supermicro MBD-A2SAV-B Intel Atom E3940 4-Core Mini-ITX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The MBD-A2SAV-B is a Mini-ITX embedded motherboard with an integrated Intel Atom E3940 SoC, supporting up to 8 GB DDR3L, dual Gigabit networking, multiple display outputs, and flexible storage through SATA/M.2 — ideal for compact server and embedded applications.
Specifications
Model Number: MBD-A2SAV-B
Brand: Supermicro
Alt Part Number(s): MBD-A2SAV-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-A2SAV-B
Processor Type: Intel Atom
Processor Model: E3940
Processor Core: 4-Cores
Processor Socket: BGA-1296
Storage Interfaces: 6 SATA3 (6Gbps) ports
Network: 2 × RJ45 GbE via Intel I210-AT controllers
Video Output:1 HDMI, 1 DisplayPort (DP), and 1 VGA port
USB Ports: Total of 10 ports, including 2 USB 3.0 (rear) and 8 USB 2.0
RAID: RAID 0, 1, 10
Graphics: Intel HD Graphics
Memory Supported: 8GB
Memory Type: DDR3L
Memory Slots: 1 × SO-DIMM
Expansion Slots: 1 × PCIe 2.0 ×2 (wired x8)
Fan Headers: 2 × 4-pin (PWM + monitoring)
Error Detection: ECC
TDP: 9W
Power Input: 12 V DC
Form Factor: Mini-ITX
*
