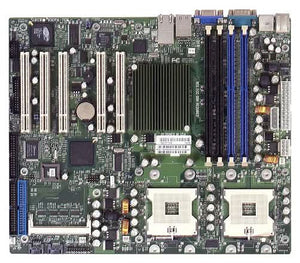

Supermicro X5DPA-TGM+ Intel-E7501 Socket-mPGA604 DDR-266MHz ATX Mother Board

Supermicro_Intel-E7501_Socket-mPGA604_DDR_ATX_Mother_Board__X5DPA-TGM

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom

Overview

Specifications

Mfr Part Number:X5DPA-TGM+

Brand:Super Micro

Model Number:X5DPA-TGM+

Type:Mother Board

Technical Description

Brand:Super Micro

Model:X5DPA-TGM+

CPU Socket Type:Dual mPGA604

CPU Type:Dual Intel Xeon

System Bus:533/400MHz

Chipsets:Intel E7501

Number of DDR Slots:4 x 184Pin

DDR Standard:DDR266/200

Max Memory Supported: 8GB

Channel Supported: Dual Channel

ECC Supported:Yes

PCI Slots:5

PATA:2 x ATA 100 4 Dev. Max

SATA: 2 x SATA 1.5Gb/s

SATA RAID:0/1

Onboard Video Chipset:ATI RAGE XL

LAN Chipset: Intel 82541

LAN Speed:10/100/1000Mbps

Second LAN Chipset: Intel 82551QM

Second LAN Speed: 10/100Mbps

Max LAN Speed:10/100/1000Mbps + 10/100Mbps

Form Factor:ATX

Dimensions: 12" x 10"

Features

ACPI/APM Power Management

Main Switch Override Mechanism

Wake-On-Ring (WOR)

Wake-On-LAN (WOL)

Keyboard Wakeup from Soft-Off

Power-on mode control for AC power loss recovery

Internal/External modem remote ring-on

PC Health Monitoring:Chassis intrusion detection (through LDCM);Chassis intrusion header; SDDC
