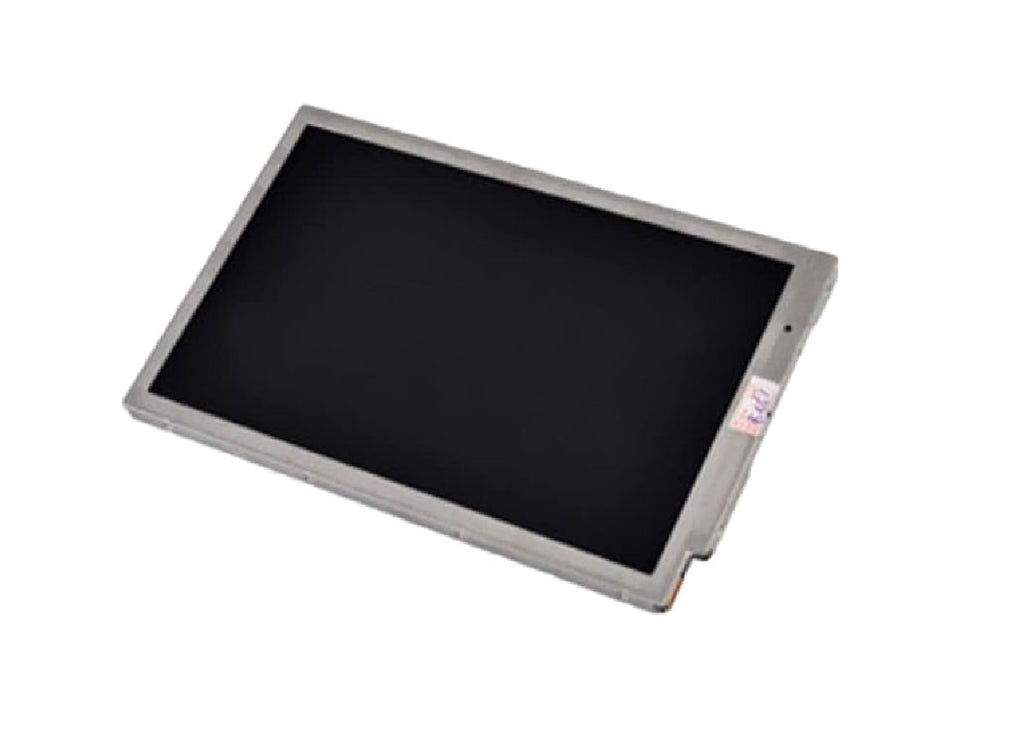

Sharp LQ10D421 10.4" a-Si TFT-LCD 31-pin Parallel RGB 640 x 480 Display Module
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The LQ10D421 is a 10.4-inch color TFT-LCD display module manufactured by Sharp. It is an industrial-grade panel primarily used in factory automation, measuring instruments, and medical equipment
Specifications
Model Number: LQ10D421
Brand: Sharp
Alt Part Number(s): LQ10D421
Product Type: LCD Display
Technical Description
Brand: Sharp
Model Number: LQ10D421
Resolution: 640 x 480 (VGA)
Display Type: a-Si TFT-LCD
Screen Size: 10.4 Inch
Brightness: 300 cd/m² (Typical)
Aspect Ratio: 4:3
Contrast Ratio: 300:1
Response Time: 20ms
Refresh Rate: 60Hz
Interface: 31-pin Parallel RGB
Backlight: 2 CCFL lamps
Input Voltage: 3.3V
