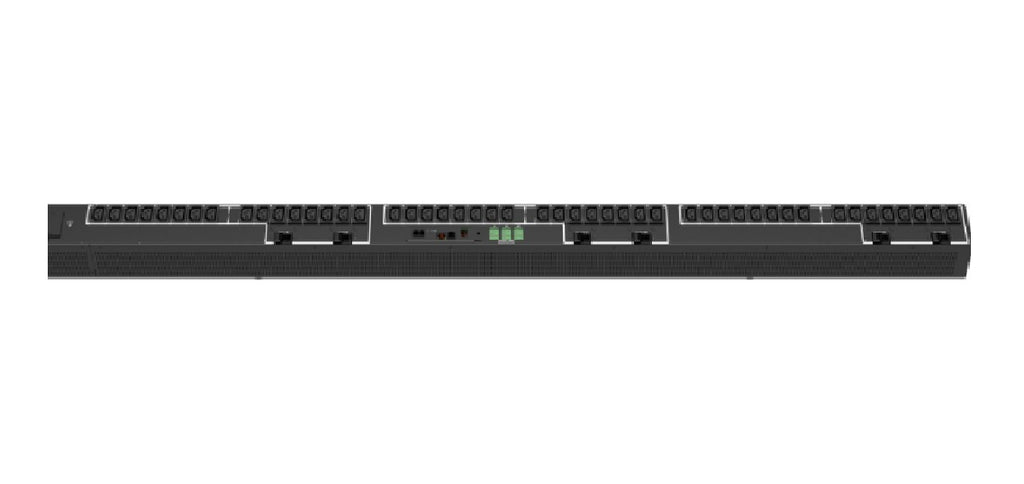

Server Technology PRO2 Switched STV-4525K 22.0kW 32A Power Distribution Unit
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Server Technology STV-4525K is a high-density, PRO2 Switched Rack Power Distribution Unit (PDU) engineered for ultra-high capacity 400V 3-phase Wye configurations. Operating as a zero-U (0U) vertical profile "Primary" unit, it integrates individual remote outlet power cycling with aggregate 3-phase input sensing, providing data centers with the precise monitoring tools required to manage up to 22.0 kW of compute hardware safely.
Specifications
Model Number: STV-4525K
Brand: Server Technology
Alt Part Number(s): STV-4525K
Product Type: Power Distribution Unit
Technical Description
Brand: Server Technology
Model: STV-4525K
Product Series: PRO2 Switched
Phase: Single-phase
Input connectors: IEC 60309
Output Connectors: 36 × IEC 60320 C13 + 12 × IEC 60320 C19
Receptacle Type: IEC 60320 C13, IEC 60320 C19
Total power capacity: 22.0kW
Input Current: 32A
Total Number of Outlets: 48-Outlets
Cord Length: 10ft
Frequency: 50/60 Hz
Input Voltage: 400 VAC
Rack Height: 0U
Output Voltage: 230 VAC
Form Factor: 0U Rackmount
Height: 69"
Width: 1.75"
Depth: 2.25"
