- Overview

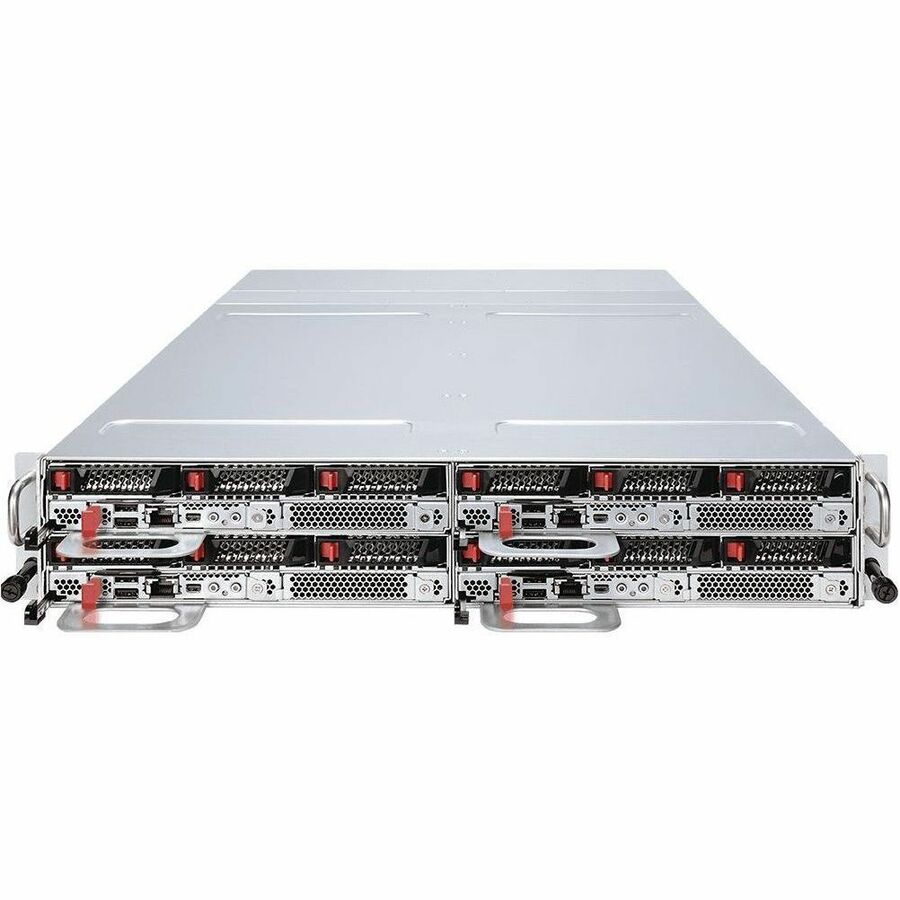

The MSI S3061D270RAU3-X4 (also known as the CD270-S3061-X4) is a high-density 2U 4-node "Core Compute" server platform based on the Open Compute Project (OCP) DC-MHS architecture. It is specifically designed to maximize compute density in data center environments by housing four independent server nodes in a single 2U chassis.
- 2U4N (DC-MHS architecture)
- Single Intel® Xeon® 6700 series processors, TDP up to 350W, per node
- (16) DDR5 RDIMM, 8 channels(2DPC), up to 6400MT/s, per node
- (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node
- (1) 1000Base-T Dedicated Server Management Port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
Product Specification:
Package Contents:
|
| Product Type: Barebone System |
| Input Voltage: 120 V AC,230 V AC |
| Manufacturer Website Address: http://www.msi.com |
| Form Factor: Rack-mountable |
| Manufacturer: MSI |
| Product Name: S3061D270RAU3-X4 Barebone Systems |
| Processor Supported: Xeon 6 |
| Raid Levels: 0, 1, 5, 10 |
| Controller Type: NVMe |
| Processor Socket: Socket LGA-4710 |
| Rack Height: 2U |
| Brand Name: MSI |
| Memory Technology: DDR5 SDRAM |
| Thermal Design Power: 350 W |
| Chipset Manufacturer: Intel |
| Graphics Controller Manufacturer: ASPEED |
| Number Of Power Supplies Installed: 2 |
| Graphics Memory Accessibility: Dedicated |
| Number Of Processors Supported: 1 |
| Number Of Processors Installed: 1 |
| Raid Supported: Yes |
| Number Of Total Expansion Bays: 3 |
| Number Of Pci Express X16 Slots: 1 |
| Maximum Power Supply Wattage: 2700 W |
| Total Number Of Usb Ports: 2 |
| Number Of Onboard Usb 2.0 Ports: 1 |
| Number Of 2.5" Bays: 3 |
| Total Number Of Expansion Slots: 1 |
| Number Of M.2 Interfaces: 2 |
| Energy Star: Yes |
| Number Of Usb Type A Ports: 1 |
| Total Number Of Memory Slots: 16 |
| Energy Efficiency Compliance: Energy-related Products Directive (ErP) |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Feature1: 2U4N (DC-MHS architecture) |
| Feature2: Single Intel® Xeon® 6700 series processors, TDP up to 350W, per node |
| Feature3: (16) DDR5 RDIMM, 8 channels(2DPC), up to 6400MT/s, per node |
| Feature4: (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node |
| Feature5: (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node |
| Feature6: (1) 1000Base-T Dedicated Server Management Port per node with: |
| Feature7: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support |
| Feature8: Dual BIOS & BMC |
| Feature9: TPM2.0 and Hardware Root of Trust module are supported as optional |
