- Overview

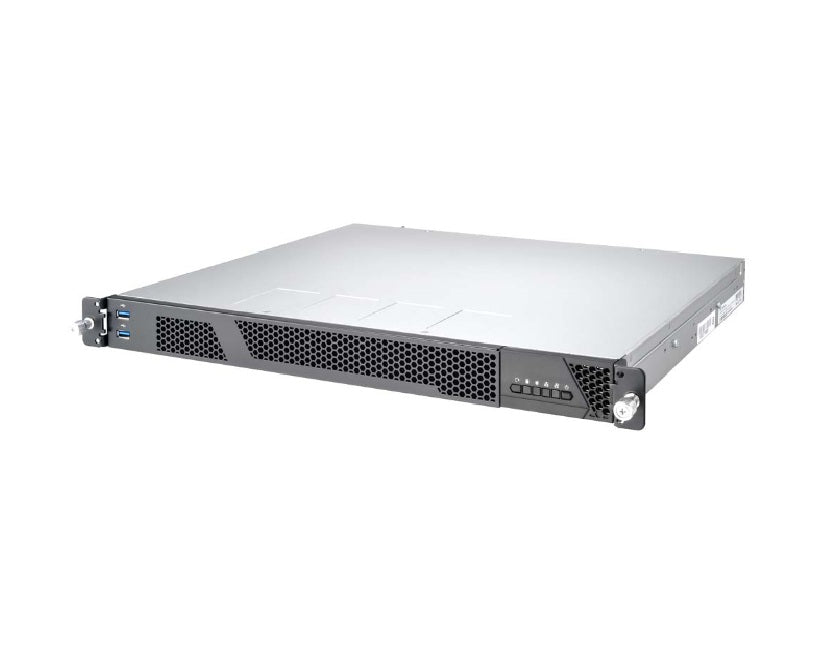

The B5573G40V4-HE (also identified as the TYAN GX40B5573) is a single-socket 1U rackmount server designed by MiTAC Computing specifically for cloud edge computing and data-intensive applications. It features the Intel C266 chipset and is built around the S5573GMNR-HE motherboard.
Specifications
Model Number: B5573G40V4-HE
Brand: MITAC
Alt Part Number(s): B5573G40V4-HE
Product Type: Barebone Server
Technical Description
Brand: MITAC
Model Number: B5573G40V4-HE
Processor Type: Intel Xeon E-2400 series Processors
Processor Core: 8-Core
Processor Power: Up to 95 W
Processor Socket: 1 × Socket LGA1700
Motherboard: S5573GMNR‑HE
Chipset: Intel C266
Graphics Controller: ASPEED AST2600
Networking: 2 × 10 GbE RJ‑45 ports
Number of Drive Bays: 24 × 2.5″ hot‑swap NVMe U.2 drive bays
Rear Expansion Slots: 1 × PCIe Gen5 ×16
Memory Supported: 128GB
Memory Size: 32 GB
Memory Technology: DDR5
Memory Speed: DDR5‑4800 MT/s
RAID Levels: RAID 0/1/5/10
Memory Slots: (4) DIMM slots
Memory Channels: 2-Channels
Cooling: 3 × 4028 system fans
Power Supply: Single 300 W 80 PLUS Gold‑certified PSU
Form Factor: 1U Rackmount
Height: 1.75"
Width: 19"
Depth: 16.1"
