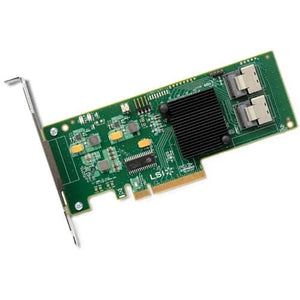

LSI Logic LSI00194 SAS 6.0Gbps PCI-Express 2.0 RAID Low Profile Controller Card

Overview

The LSI SAS 9211-8i host bus adapter provides the greatest available throughput to internal server storage arrays through eight internal 6Gb/s ports, driving up to 256 SAS and SATA physical devices. This HBA offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. Utilizing two internal x4 SFF8087 Mini-SAS connectors, the low-profile SAS 9211-8i is an excellent fit for 1U and 2U servers.



Specifications

Model Number:  LSI00194

Brand:  LSI Logic

Alt Part Number(s):  LSI00194

Product Type:  Controller Card



Technical Description

Brand:  LSI Logic

Model:  LSI00194

Product Name:  LSI00194 8 Port Int 6GB SATA+SAS PCIE 2.0

Series:  9211-8i

Product Type:  SAS Controller

Host Interface:  PCI Express x8

RAID Supported:  Yes

RAID Levels:  0, 1, 1E, 10

Total Number of SAS Ports:  2

Number of SAS Ports (Internal):  2

SAS Connector Details:  2 SFF-8087

Form Factor:  Plug-in Card

Platform Supported:  PC

Green Compliant:  RoHS

Card Height:  Low-profile

Number of Physical Drive Supported:  256



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
