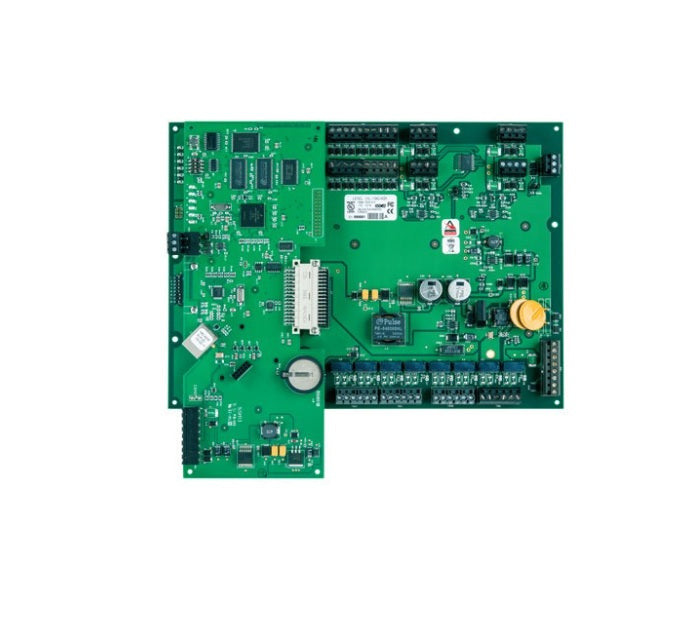

Lenel LNL-1340-M2K M-Series Four-Reader Interface Module

Overview

The LNL-1340-M2K is the reader/IO board and is paired with an LNL-3300-M5 CPU board, for head-of-line configuration. The LNL-1340-M2K supports the same readers as the M2000, with F2F or supervised F2F protocol, and has the same wiring configurations. Like the legacy M2000, the LNL-1340-M2K can support native supervised F2F readers or readers with Wiegand outputs that interface through WIU devices prior to termination at the LNL-1340-M2K. The LNL-1340-M2K also supports 10 general-purpose inputs, and has eight Form-C relay outputs



Specifications

Mfr Part Number:  LNL-1340-M2K

Brand:  Lenel

Alt Part Number:   LNL-1340-M2K

Type:  Interface Module



Technical Description

Brand:  Lenel

Model:  LNL-1340-M2K

Number of Readers:  4

Number of Input:  10

Number of Output:  8

Relay Outputs:  8 outputs, Form-C, 2 A @ 30 VAC/DC, resistive

Inputs:  10 unsupervised/supervised, standard EOL: 1K/1K ohm, 1%, ¼ watt

Reader interface:  Clock-data,​ SF2F,​ Wiegand

Host connection:  RS485

Operating temperature: 0 to +70°C

Storage temperature:  -55 to +85°C

Relative humidity:  5 to 95% noncondensing

Primary Power:  18 VAC, ± 15%, 2.8 A

12 VDC Output:  10.8 to 13.2 VDC, 550 mA max.

Output Voltage:  208 - 230 V AC



Features

Support for the same readers as the legacy CASI M2000 controllers with F2F or supervised F2F protocol and field wiring compatibility

Support for native supervised F2F readers or readers with Wiegand outputs that interface through WIU device prior to termination at the LNL-1340-M2K

Can be used downstream of another M series controller without an additional LNL-3300-M2K

10 general-purpose inputs

8 Form-C relay outputs

Elevator control, single cab
