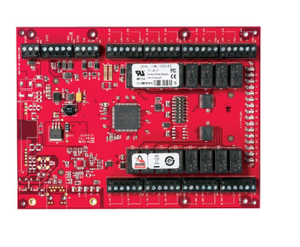

Lenel LNL-1200-S3 Series 3 16-Relay 12/24 VDC Output Control Module

Overview

Series 3 Lenel® Output Control Module (OCM) communicates directly with the Intelligent System Controller (ISC) by either 2-wire or 4-wire RS-485 communication. Each OCM is an individually-addressed device, and counts as a single device on all Intelligent System Controllers. The OCM can be operated by either 12 or 24 VDC power. Each OCM includes dedicated tamper and power failure input contacts.



Specifications

Mfr Part Number:  LNL-1200-S3

Brand:  Lenel

Model Number:  LNL-1200-S3

Type:  Output Control Module



Technical Description

Brand:  Lenel

Model:  LNL-1200-S3

Outputs:  16 Form-C, 5A @ 30Vdc, resistive

Controller type:  Input/Output Module

Host connection:  RS485

Elevator control max no. of floors:  128

Operating temperature:  0 to +70°C

Storage temperature:  -55 to +85°C

Operating voltage:  12 to 24Vdc ±10%, 1100mA maximum

Compliancy:  CE, RoHS, UL 1076, UL 294

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Widht:  6 In

Length:  8 In

Height: 0.69 In



Feautres

16 Form-C 5 A, 30 VDC contacts for load switching

12 or 24 VDC input power

2 dedicated digital inputs for tamper and power failure status

RS-485 communication, multidropped (2-wire or 4-wire RS-485)

Up to 16 OCMs per Intelligent System Controller

On-board termination jumpers

DIP switch-selectable addressing

Status LEDs for communication to the host, heartbeat and relay status

Elevator control, support for 128 floors

Advanced Encryption Standard (AES) 128-bit or 256-bit encryption supported, depending on ISC and OnGuard version

Suitable as replacement for Series 1 and Series 2 boards



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
