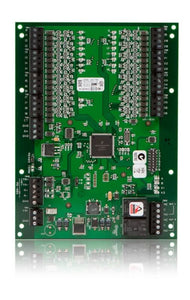

Lenel LNL-1100 12-24VDC 2-Output Input Control Module

Overview

Lenel® Input Control Module (ICM) provides the access control system with high-speed acknowledgement of critical alarm points in monitored areas. The ICM communicates directly with the Intelligent System Controller (ISC) by either 2-wire or 4-wire RS-485 communication. The ICM has 16 configurable input control points and 2 output control relays. It supports normally open, normally closed, supervised and nonsupervised circuits.



Specifications

Mfr Part Number:  LNL-1100

Brand:  Lenel

Alt Part Number:   LNL-1100

Type:  Input Control Module



Technical Description

Brand:  Lenel

Model:  LNL-1100

Number of Output:  2

Host connection:  RS485

Outputs:  2 outputs, Form-C, 5A @ 28Vdc, resistive

Inputs:  16 unsupervised/supervised, standard EOL: 1k/1k ohm

Current consumption:  350 mA

Operating temperature:  0 to +70°C

Storage temperature:  -55 to +85°C

Relative humidity:  0 to 95% noncondensing

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Width:  6 In

Length:  8 In

Height:  1 In



Features

Grade B, A, and AA line supervision

12 or 24 VDC input power

16 programmable supervised or non-supervised contacts

2 Form-C 5 A, 28 VDC contacts for load switching

2 dedicated inputs for tamper and power failure status

On-board termination jumpers

DIP switch-selectable addressing

Elevator control, support for 128 floors

Status LED for host communication and heartbeat

Variable resistor values for line supervision
