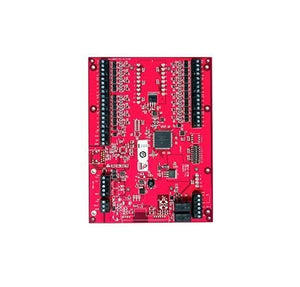

Lenel LNL-1100-S3 Series-3 RS485 12/24 VDC Input Control Module

Overview

Series 3 Lenel® Input Control Module (ICM) provides the access control system with high-speed acknowledgement of critical alarm points in monitored areas. The ICM communicates directly with the Intelligent System Controller (ISC) by either 2-wire or 4-wire RS-485 communication. The ICM has 16 configurable input control points and 2 output control relays. It supports normally open, normally closed, supervised and nonsupervised circuits.



Specifications

Mfr Part Number:  LNL-1100-S3

Brand:  Lenel

Model Number:  LNL-1100-S3

Type:  Input Control Module



Technical Description

Brand:  Lenel

Model:  LNL-1100-S3

Controller type:  Input/Output Module

Host connection:  RS485

Max no. of outputs:  2 outputs, Form-C, 5A @ 28Vdc, resistive

Controller accessory:  LNL-200XA, LNL-400XA, LNL-600XA

Operating temperature:  0 to +70°C

Storage temperature:  -55 to +85°C

Operating voltage:  12 to 24Vdc ±10%, 350mA maximum

Current consumption:  350 mA

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



Features

Grade B, A, and AA line supervision

12 or 24 VDC input power

16 programmable supervised or non-supervised contacts

2 Form-C 5 A, 28 VDC contacts for load switching

2 dedicated inputs for tamper and power failure status

On-board termination jumpers

DIP switch-selectable addressing

Elevator control, support for 128 floors

Status LED for host communication and heartbeat

Variable resistor values for line supervision

Downloadable firmware

Advanced Encryption Standard (AES) 128-bit or 256-bit encryption supported, depending on ISC and OnGuard version

Suitable as replacement for Series 1 and Series 2 boards



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
