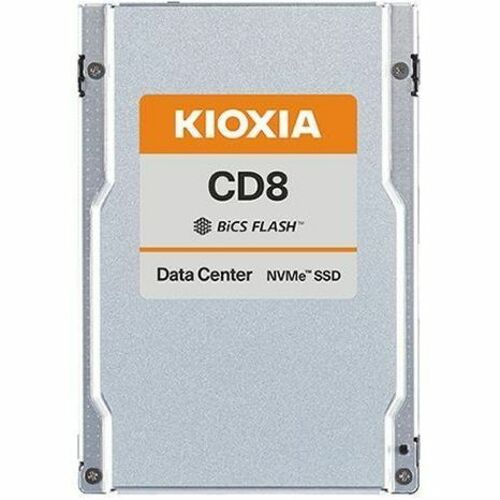

Kioxia SDF1D81GEB02T CD8 12.80TB PCIe Gen4 x4 NMVE 1.4 3DWPD SIE 2.5in Internal Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Kioxia SDF1D81GEB02T CD8 12.80TB PCIe Gen4 x4 NVMe 1.4 Solid State Drive delivers mixed use data center performance in a 2.5 inch form factor with 3 DWPD endurance and 112 layer BiCS FLASH 3D TLC technology. Featuring up to 1050000 IOPS random read, 380000 IOPS random write, 6600 MB/s sequential read, 6000 MB/s sequential write, and PCIe 4.0 x4 NVMe interface, it ensures high speed, reliable, and efficient storage for cloud and enterprise environments.
KIOXIA CD8-V Series is a mixed use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction pro-cessing and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Key Features
- PCIe® 4.0, NVMe™ 1.4 specification compliant
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15mm thickness
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D
- Provides more productive performance and superior data storage for a variety of files
- Internal drive type to ensure maximum productivity with added feasibility
- With 12.50 TB capacity you have ample space for storing millions of images, hundreds of hours of video or for music lovers, up to a million songs
- With the stunning reading speed of 6600 MB/s, get faster boot times and improved overall computing performance
- Write speed of 6000 MB/s enables you to perform write-related tasks in seconds rather than minutes
- PCI Express NVMe 4.0 x4 interface ensures quick and reliable data transfer
- 2.5" form factor allows hassle-free and easy usage with increased efficiency
Product Specification:
| Product Type: Solid State Drive |
| Device Supported: Storage System,Server |
| Storage Capacity: 12.50 TB |
| Manufacturer Part Number: KCD8XVUG12T8 |
| Manufacturer Website Address: http://www.toshiba.com |
| Weight (Approximate): 4.59 oz |
| Drive Type: Internal |
| Form Factor: 2.5" |
| Length: 4" |
| Manufacturer: Toshiba |
| Product Model: KCD8XVUG12T8 |
| Product Name: Data Center NVMe Mixed Use SSD |
| Product Series: CD8-V |
| Brand Name: KIOXIA |
| Maximum Read Transfer Rate: 6600 MB/s |
| Maximum Write Transfer Rate: 6000 MB/s |
| Drive Interface: PCI Express NVMe |
| Drive Interface Standard: PCI Express NVMe 4.0 x4 |
| Random 4kb Read: 1050000IOPS |
| Random 4kb Write: 380000IOPS |
| Endurance (Dwpd): 3 |
| Endurance Type: Mixed Use |
| Feature1: Provides more productive performance and superior data storage for a variety of files |
| Feature2: Internal drive type to ensure maximum productivity with added feasibility |
| Feature3: With 12.50 TB capacity you have ample space for storing millions of images, hundreds of hours of video or for music lovers, up to a million songs |
| Feature4: With the stunning reading speed of 6600 MB/s, get faster boot times and improved overall computing performance |
| Feature5: Write speed of 6000 MB/s enables you to perform write-related tasks in seconds rather than minutes |
| Feature6: PCI Express NVMe 4.0 x4 interface ensures quick and reliable data transfer |
| Feature7: 2.5" form factor allows hassle-free and easy usage with increased efficiency |
*
