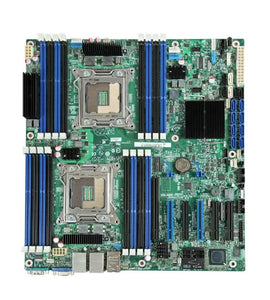

Intel DBS2600CP2 Chipset-Intel C600-A LGA2011 512Gb DDR3 SSI EEB Server Board

Overview

The Intel Server Board S2600CP family delivers the powerful performance and flexible feature advantages of the new Intel Xeon processor E5-2600 family, 16 DIMMs, dual or quad 1GbE LOM, and eight PCIe Gen3 I/O slots. The Intel Server Board S2600CP family is also available as an integrated 4U pedestal (rackable) system with a variety of storage and power supply options.



Specifications

Model Number:  DBS2600CP2

Brand:  Intel

Alt. Part Number(s):  DBS2600CP2

Product Type:  Server Motherboard



Technical Description

Brand:  Intel

Model:  DBS2600CP2

CPU:  Dual LGA 2011, Supports Dual Intel Xeon E5-2600 Processors; Supports up to 135W TDP; QPI up to 8 GT/s

Chipset:  Intel C600-A

Memory:  16x 240pin DDR3-1600/1333/1066/800 DIMM Slots, 8 Channel, ECC/REG, Unbuffered; Max Capacity up to 512GB

Slots:  5x PCI-Express 3.0 x8 Slots; 1x PCI-Express 3.0 x16 Slot

SAS:  8x SATA2/SAS Ports

SATA:  2x SATA3 Ports, Supports RAID 0, 1; 4x SATA2 Ports, Supports RAID 0, 1, 5, 10

Video:  Integrated Matrox G200 2D Video Graphics Controller

LAN:  Intel 1350 Dual Gigabit Ethernet Intergrated MAC and PHY Controller w/ Intel Virtualization Technology

Ports:  5x USB 2.0 Ports; 2x Serial Ports (1 rear, 1 via header); 2x RJ45 LAN Ports; 1x VGA Port

Form Factor:  SSI EEB, 12.0 x 13.0 inch

RoHS Compliant:  Yes
