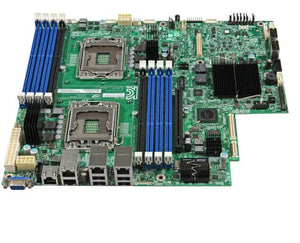

Intel DBS2400EP4 / S2400EP4 Dual Xeon Chipset C602-A Socket-LGA1356 128Gb DDR3-1600MHz SSI CEB Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
| Specifications | |
| Model Number | DBS2400EP4 |
| Brand | Intel |
| Condition | New Retail |
| Alt. Part Number(s) | S2400EP4 |
| Type | Server Motherboard |
| Technical Description | |
| Brand | Intel |
| Model | DBS2400EP4 / S2400EP4 |
| Product Type | Server Motherboard |
| Chipset Manufacturer | Intel |
| Chipset Model | C602-A |
| Processor Supported | 2 |
| Processor Technology | Virtualization Technology, Trusted Execution Technology |
| Processor Socket | Socket B2 LGA-1356 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Total Memory Slots | 8 |
| Memory Form Factor | DIMM, UDIMM, RDIMM, LRDIMM |
| Maximum Memory | 128 GB |
| Memory Standard | DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 |
| Memory Technology | DDR3 SDRAM |
| Controller Type | Serial ATA/600, Serial ATA/300 |
| RAID Levels | 0, 1, 5, 1+0 |
| GPU Model | Intel ServerEngines Pilot III |
| GPU Memory | 16 MB |
| GPU Memory Technology | DDR3 SDRAM |
| Gigabit Ethernet | Yes |
| Total Expansion Slots | 1 |
| Number of PCI Slots | No |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express x16 Slots | 1 |
| USB 2.0 Ports | 4 |
| Serial Port | Yes |
| VGA | Yes |
| Network (RJ-45) Ports | 4 |
| SATA Interfaces | 10 |
| USB 2.0 Ports | 2 |
| Form Factor | SSI CEB |
| Width | 12" (304.8 mm) |
| Depth | 10.5" (266.7 mm) |
| Overview | |
| The Intel® Server Board S2400EP family supports dual Intel® Xeon® processors E5-2400 with 8 DIMMs, 6-channel native DDR-3 support, and a healthy storage capability with 10 onboard SATA and 2 mini-SAS. The Intel Server Board S2400EP family comes in an industry standard SSI CEB form factor, long-life roadmap support, and the availability of short chassis length barebone systems. | |
* | |
