Description
Overview

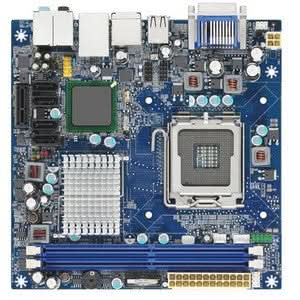

Built in the mini-ITX form factor, Intel Desktop Board DG45FC is a small but powerful desktop board with integrated HDMI display output and hardware accelerated decode during high-definition playback.
Specifications
Model Number: BLKDG45FC
Brand: Intel
Alt Part Number(s): DG45FC
Product Type: Motherboard
Technical Description
Brand: Intel
Model: BLKDG45FC / DG45FC
Chipset: Intel G45 Express
Total Processor Supported: 1
Processor Technology: Viiv Technology
Processor Socket: Socket T LGA-775
Processor Supported: Core 2 Duo, Celeron Dual-Core, Celeron, Xeon Dual-Core
Front Side Bus: 1333 MHz, 1066 MHz, 800 MHz
64-bit Processing: Yes
Number of Memory Slots: 2
Maximum Memory: 4 GB
Memory Standard: DDR2-800/PC2-6400, DDR2-667/PC2-5300
Memory Technology: DDR2 SDRAM
Controller Type: SATA/300
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller: Intel GMA X4500HD
Sound Controller: IDT 92HD73E
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x1 Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 6
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
Number of S/PDIF Out Ports: 1
Number of HDMI Outputs: 1
Number of DVI Outputs: 1
Network (RJ-45): Yes
Number of SATA Interfaces: 5
Total Number of Onboard USB Ports: 2
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Green Compliance Certificate/Authority: RoHS, ENERGY STAR
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
