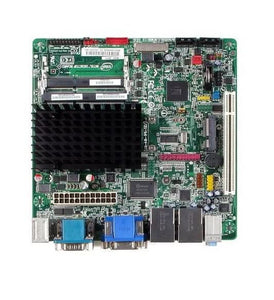

Intel Desktop Board D2500CC is integrated with the new Intel Atom processor D2500 and the Intel NM10 Express Chipset to offer a PC-like embedded desktop system. The board features a dual 10/100/1000 integrated Intel LAN, full legacy features with 4 serial ports, and Intel High Definition Audio (Intel HD Audio). The Intel Desktop Board D2500CC features a passive thermal solution which is suitable for low-power embedded usages. Based on the standard mini-ITX form factor, the Intel Desktop Board D2500CC board is a cost-competitive, entry-level embedded desktop system due to the wide mini-ITX ecosystem support.
Model Number: BLKD2500CCE
Mfr Part Number: D2500CCE
Note: New Motherboard With Accessory.
Processor: 1.86 GHz Intel Atom D2500 (dual core)
Chipset: Intel NM10
System Memory: 2 DDR3 800/1066 SO-DIMM, Up to 4 GB of memory
Graphics: Intel Integrated GMA 3600
PCI: PCI Express Mini Card
Onboard Serial ATA: 2 SATA (3 Gb/sec.) connectors
Onboard USB: 7 USB 2.0
Onboard LAN: Intel 82574L 10/100/1000
Onboard Audio: Intel HD Audio (6+2 channels)
Back Panel I/O: 4 USB 2.0 ports, 1 VGA port, 2 LAN ports, 1 DVI-I port, 2 RS-232 COM ports, 1 PS2 keyboard port, 1 PS2 mouse port, 3 Audio jacks: line-out, line-in, mic-in
BIOS: Intel BIOS 8 Mb flash memory
Form Factor: Mini-ITX (17 x 17 cm)
Include: New Board with Accessory
Onboard I/O Connectors
3 USB 2.0 via 2 pin headers
2 SATA connectors
1 Front panel audio pin header
1 Front panel pin header
Fan pin header
1 LPT pin header
1 LVDS connector (24-bit, dual channel)
2 RS-232 COM pin headers (AT/Everex)
1 TPM Header
24-pin ATX connector
* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
