Description
Overview

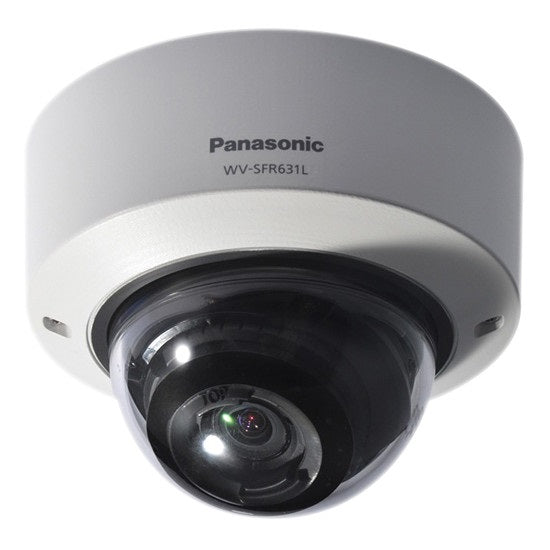

This indoor, vandal resistant 6 Series i-PRO camera features a next generation UniPhier LSI processor and 60 frames per second performance in 1080p. The new platform offers Enhanced Super Dynamic technology enabling an impressive wide dynamic light range (up to 133 db), delivering outstanding performance even in the most dynamic and challenging lighting conditions. The SFR631L has the ability to encode up to four H.264 streams simultaneously, and features a super-high sensitivity in low light conditions generating usable color video at less than .01 lux illumination.
Specifications
Model Number: WV-SFR631L
Brand: Panasonic
Alt Part Number(s): WV-SFR631L
Product Type: Network Surveillance Camera
Technical Description
Brand: Panasonic
Model: WV-SFR631L
Camera Signal: Network IP
Connection Type: Wired
Infrared Distance: 61~100 Feet
Resolution: 3.0 Megapixel
Lens Type: Varifocal
Lens Size: 2.8-10mm, 2.8-10 mm
Mount Type: Ceiling, Wall
Compression Method: H.264, M-JPEG, JPEG
Durability: Indoor, Vandal Resistant
Voltage: 12vDC, PoE
Automatic Gain Control (AGC): ON (LOW, MID, HIGH) / OFF
Dimensions (W x H): 129.5 mm x 102.5 mm (H) {5-3/32 inches x 4-1/32 inches (H)}
Electronic Shutter: [2 mega pixel [16:9](60 fps mode)/ 1.3 mega pixel [16:9](60 fps mode)], OFF(1/60), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,1/10000, Other than [2 mega pixel [16:9](60 fps mode)/ 1.3 mega pixel [16:9](60 fps mode)], OFF(1/30), 3/100, 3/120, 2/10
Image Device: Approx. 1/3 type MOS image sensor
Image Pixels-Effective: Approx. 2.4 mega pixels
Minimum Scene Illumination: 0.01 lx
Operating Humidity: 20 ~ 90 % (no condensation)
Operating Temperature: -10°C ~ +50°C (14 °F ~ 122 °F)
OSD Menu: English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
DC power supply: 12 V DC/760 mA/Approx. 9.1 W, PoE Device: 48 V DC/240 mA/Approx. 11.1 W (Class 0 device)
Privacy Zone: Up to 8 zones
Protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
Scanning System: Progressive
Signal System: NTSC, PAL
Video Output: 1.0 V [p-p]/75 ohm
Digital Noise Reduction: High / Low
Angle of View: Horizontal: ± 180°, Vertical: 0-85°
Motion Detection Tracking: 4 areas
Automatic White Balance: AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
IR Distance: Approx. 30 m {98.43 feet}
Features
High resolution: 1920 x 1080 HD at up to 60fps H.264
High Frame Rate 60 fps video assures smooth motion for most critical applications like casinos, airports, stadiums and more
Enhanced Super Dynamic and Adaptive Black Stretch (ABS) technologies deliver the industry-leading 133dB wider dynamic range
Double SDXC/SDHC/SD Memory card slots for manual recording – Permits extended recording for long storage ( Up to 128GB (64GB x 2)) recording; and redundant recording for data protection (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup recording upon network failure (H.264 / JPEG)
Built-in IR LEDs (up to 100 feet) make it possible to capture images at 0 lux. The wide angle IR LEDs enable the illumination of whole areas clearly, making it easier to recognize faces and clothing
Super Chroma Compensation (SCC) assures excellent color reproduction even when the IR cut filter is removed to gain sensitivity under low light
Exceptional compression efficiency via UniPhier’s new Shadow H.264 Compression Engine
Auto Back Focus and Motorized Zoom (2.8-10mm) lens ensure easy installation
Multiple H.264 (High profile) streams (max. 4 streams) to ensure simultaneous real-time monitoring and high resolution recording
Multi-process NR & 3D-DNR ensures noise reduction in various conditions
VIQS (Variable Image Quality on Specified area) technology allows the designated eight areas to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image file size and bit rate
Cropping function enables to provide whole image (1280 x 960) and the part image (640 x 480) simultaneously. Up to 4 image capture areas can be specified, and it is also possible to control the sequence
2x, 4x digital zoom controlled by browser
VMD (Video Motion Detection) with 4 programmable detection areas
15 steps sensitivity level and 10 steps detection size
Full duplex bi-directional audio allows interactive communication between camera site and monitoring site
4 major i-VMD functions like intruder, direction, loitering and scene changes can be activated
Easy Installation -- 6 patterns of holes for various gang boxes; 4 points locking mechanism to simplify the mounting direction; non screw lock PTY mechanism enables quicker angle adjustment; a flat bottom body enables easy installation without surface mounting unit
Vandal resistant mechanism for high reliability
