Description
Overview

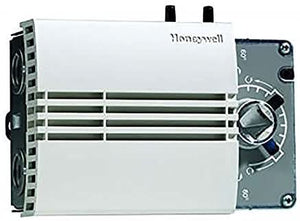

Honeywell W7751H 2025 Excel 10 50 Hz,60 Hz 78kilobit Smart VAV Actuator
Specifications
Model Number: W7751H 2025
Brand: Honeywell
Alt Part Number(s): W7751H 2025
Product Type: Smart VAV Actuator
Technical Description
Brand: Honeywell
Model: W7751H 2025
Frequency: 50 Hz,60 Hz
Network Speed: High speed 78 kilobit
Network Communications: Lon Works Bus
Includes: ML6161 Actuator
Compatible With Application: 63-7045
Contact Ratings: Has UUKL approval
Commissioning Software: LonSpec RapidZone LNS Plug-in
Operating Humidity Range: 5 to 95% RH, non-condensing
Setpoint Temperature Range (C): 7 to 37 C
Setpoint Temperature Range (F): 45 to 99 F
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Features
Energy saving setpoint reset for electrical demand limit control.
The actuator included with W7751H mounts directly onto the VAV box damper shaft and has up to 70 lb-in. torque, 90 degrees stroke, and 90 sec.
Capable of standalone operation, but uses E-Bus network communications.
Easy user access to the network communications jack.
Uses an enhanced microbridge-type airflow sensor with a dual integral restrictor design.
Easy user access to airflow sensor inputs.
Provides Proportional Integral Derivative (PID) temperature control.
Designed for pressure-independent Variable Air Volume (VAV) control.
Floating hot water and three-stage electric or modulating hot water heat.
Provides nonlinear floating algorithm for velocity control loops.
Individual zone pressurization for supply and exhaust control.
Factory configured via EEPROM with critical user parameters default values.
Motion sensor interface for enhanced energy savings.
Supports Terminal Regulated Air Volume (TRAV) concept.
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
