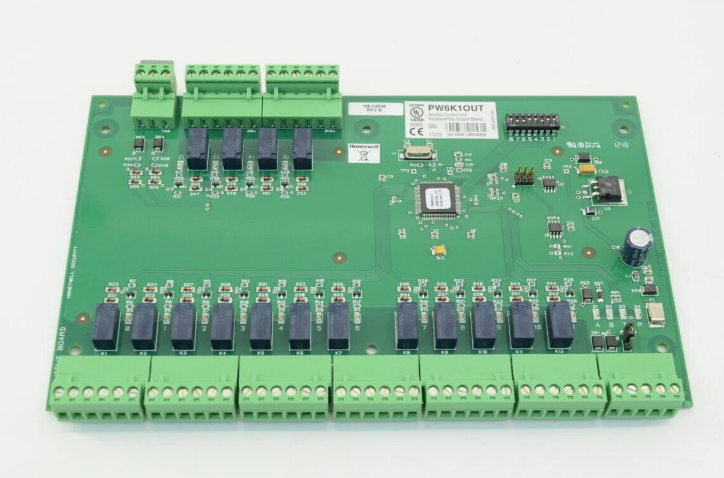

Honeywell PW6K1OUT Prowatch Westinghouse 16Output elevator Relay Access Output Module

Overview

The Output Board provides connections for 16 relay outputs. You can either mount the board in a rack or open and flat. If you rack-mount the board, only one edge is accessible for wiring; however, a flat mount increases the amount of available I/O slightly but significantly decreases the number of boards that can be mounted in one

enclosure.

Specifications

Mfr Part Number:  PW6K1OUT

Brand:  Honeywell

Model Number:  PW6K1OUT

Type:  Access Output Module



Technical Description

Honeywell PW6K1OUT Prowatch Westinghouse 16Output elevator Relay Access Output Module



Features

Modular design fits a wide variety of applications

User programmable relay outputs allow for specific control needs

User programmable alarm inputs offer flexible system configuration and control

RS485 communication to all modules

Dedicated cabinet tamper and power monitor inputs

Analog to digital converter technology provides digital filtering and input conditioning

Supports the choice of Normally Open/Normally Closed, supervised, and non-supervised circuits

Supports a wide range of reader technologies including Wiegand, magnetic stripe, proximity, and keypad

System off-line modes customizable per reader include facility code access, locked (no access), and unlocked (full access)

Supports multiple reader and card formats for maximum flexibility and security options

Operating modes include locked, unlocked, facility code, card only, card and PIN, card or PIN and PIN only

Alarm circuit type – Normally Open/Normally Closed, nonsupervised, supervised (with correct EOL)

UL294 / UL1076 and CUL Listed
